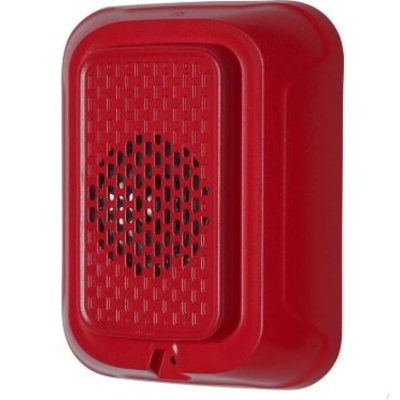

Low Frequency Sounder - Red System Sensor HRL-LF
View Larger

Low Frequency Sounder - Red

Item # HRL-LF
Manufacturer Item # HRL-LF

Log In To View
Prices		 Pixel Silver
Sold As: ea
Pixel Trans
Pixel Trans
System Sensor
More Products from System Sensor 		Pixel Silver
Product Shopping List  Add to Shopping List
Product Wish List  Save For Later
Pixel Trans
Report Incorrect
Pixel Trans

Overview

Pixel Trans
Low Frequency Sounder - Red
Pixel Trans
L-Series audible visible notification products have features to maximize profits with lower current draw and modern aesthetics. The L-Series offers the most versatile and easy-to-use line of low-frequency sounder and low-frequency sounder strobes in the industry. With white and red plastic housings, listed for wall and ceiling mounting, L-Series Low Frequency can meet virtually any application requirement.

Features:
  • 520 Hz ± 10% square wave tone, NFPA compliance
  • Full candela range plus High/Low tone options to optimize current draw for a wide variety of applications
  • Compact, standard, and round ceiling options
  • Field-selectable candela settings on wall units: 15, 30, 75, 95, 110, 135, and 185
  • Rotary switch for High and Low, Temp 3 and Temp4 settings
  • Plug-in design with minimal intrusion into the back box
  • Mounting plate shorting spring checks wiring continuity before device installation
  • Electrically compatible with legacy SpectrAlert and SpectrAlert Advance devices, and provides a direct replacement for HW/R-LF and P2R/WH-LF
  • Compatible with MDL3 sync module
  • Sounders listed for ceiling and wall mounting
  • Sounder Strobe listed for wall mounting
  • Updated modern aesthetics

Specifications

Pixel Trans
  Product NameLow Frequency Sounder - Red
Pixel Silver
  Brand NameSystem Sensor
Pixel Silver
  Mfg #HRL-LF
Pixel Silver
  Cube58.65 cu in
Pixel Silver
  Length5.60 in
Pixel Silver
  Width1.90 in
Pixel Silver
  Height4.70 in
Pixel Silver
  ColorRed
Pixel Silver
  Operating Voltage16 - 33 VDC
Pixel Silver
  Sound Output (dB)76 / 80 dBA
Pixel Silver
  UPC783863054631
Pixel Silver
  Wire (Awg)12
Pixel Silver
Pixel Trans

Documents

Pixel Trans
Pdf HRL-LF.pdf
