Home » Fire » Horns & Strobes » Horn

View Larger

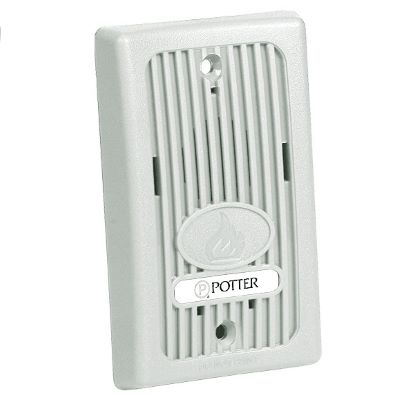

12 / 24 VDC Wall Mini-Horn - White

Name: 12 / 24 VDC Wall Mini-Horn - White
Brand: Potter
SKU: MHT-1224W
Rating: 5 (1 reviews)

Item # MHT-1224W

Manufacturer Item # MHT-1224W

Sold As: ea
Special Order

More Products from Potter

Add to Shopping List

Save For Later

Overview

12 / 24 VDC Wall Mini-Horn - White

The MHT-1224 Series mini-horn is a high-quality remote audible signaling appliance that offers dependable remote annunciation. The MHT-1224 is ideal for applications where a dependable audible alarm signal is required in applications such as hotels, dormitories, and apartments

Features:

Single unit is capable of 12 or 24 VDC determined by the input voltage
Jumper selectable temporal 3 or continuous tone
Horn frequency is 3100Hz
Terminal blocks (12 AWG to 18 AWG)
Low current consumption
Variety of mounting options for new construction and retrofit applications
Synchronize using the AVSM Series control module
ANSI/UL 464 listed for fire protective service
Textured finish high impact plastic faceplate, available in red or off-white

Specifications

Product Name	12 / 24 VDC Wall Mini-Horn - White

Brand Name	Potter

Mfg #	MHT-1224W

Cube	6.36 cu in

Length	0.50 in

Width	2.84 in

Height	4.48 in

Color	White

Environment	Indoor

Installation	Wall

Operating Voltage	12 / 24 VDC

Sound Output (dB)	90

Wire (Awg)	12 - 18

Documents

MHT-1224W.pdf
