Home » Fire » Horns & Strobes » Horn

View Larger

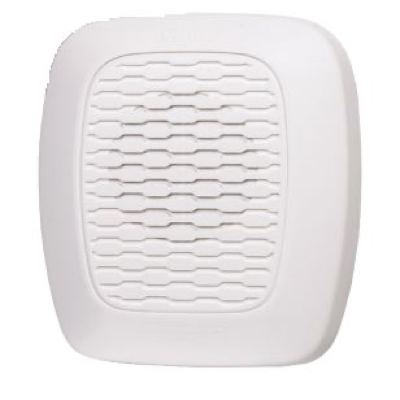

Low Frequency Horn - White

Name: Low Frequency Horn - White
Brand: Gentex Corp.
SKU: GHLF-W
Rating: 5 (1 reviews)

Item # GHLF-W

Manufacturer Item # GHLFW

Sold As: EA

More Products from Gentex Corp.

Add to Shopping List

Save For Later

Overview

Low Frequency Horn - White

Low frequency horn, temporal 3 sounder, temporal 4 capabilities, plain (no lettering), white faceplate.

Features:

Nominal voltage 24 VDC
Unit Dimensions: 6-1/8" (15.55 cm) high × 5-1/2" (13.97 cm) wide × 1-5/8" (4.13 cm) deep
Super-Slide® Bracket - Ease of Supervision Testing
Checkmate® - Instant Voltage Verification
Synchronize horn with Gentex GTSM Synchronization Control Module
Prewire entire system, install mounting bracket, then install signals
Input terminals accept 12 to 18 AWG
Produces a 520Hz square wave, temporal 3 tone
Jumper selection for normal or loud dBA
Temporal 4 pattern available when used with Gentex GTSM Synchronization Module
Temporal 4 520Hz measured per ANSI/UL 2075

Specifications

Product Name	Low Frequency Horn - White

Brand Name	Gentex Corp.

Mfg #	GHLFW

Cube	92.36 cu in

Length	5.50 in

Width	1.63 in

Height	6.13 in

Color	White

UPC	700217039724

Documents

GHLFW.pdf
