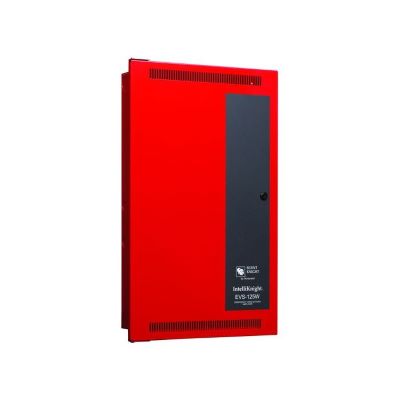

Intelligent 125 Watt Amplifier

Name: Intelligent 125 Watt Amplifier
Brand: Silent Knight By Honeywell
SKU: EVS-125W
Rating: 5 (1 reviews)

Item # EVS-125W

Manufacturer Item # EVS-125W

Sold As: EA

More Products from Silent Knight By Honeywell

Add to Shopping List

Save For Later

Overview

Intelligent 125 Watt Amplifier

The EVS-125W is an intelligent 125 watt amplifier for use with version 14.0 or newer 6820EVS. The EVS-125W is used to amplify audio messaging throughout an area or facility. The EVS-125W is capable of producing 125 watts of audio power over 4, expandable to 8, fully programmable speaker circuits.

Features:

SBUS addressable, up to four EVS-125w per system.
Each EVS-125W is supervised and has four onboard audio circuits expandable to eight with the EVS-CE4
EVS-125W uses an easy to install wire harness to connect the ECS-CE4 audio circuit expander
The EVS-125W has it’s own power supply and backup battery
Six-wire connection to EVS system: Two-wires for the voice bus and four-wires for the SBUS connections
120 VAC or 240 VAC operation
UL 864 and UL 2572

Specifications

Product Name	Intelligent 125 Watt Amplifier

Brand Name	Silent Knight By Honeywell

Mfg #	EVS-125W

Cube	3306 cu in

Length	4.10 in

Width	16.00 in

Height	26.25 in

UPC	783196013893

Documents

EVS-125W.pdf
