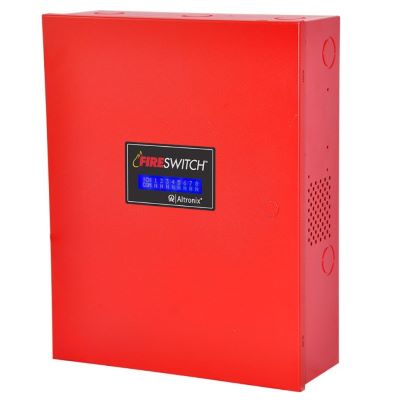

Managed NAC Power Extender, 4 Class A, 8 Class B, 24VDC @ 10A and Network Connection

Altronix FireSwitch108 Networked NAC Power Extender adds greater flexibility and capacity to your system. Eight (8) Class B NACs are individually programmable for Aux. power or up to Four (4) Class A outputs. FireSwitch generates CO Temporal Code 4, compatible with Gentex®, Potter, and System Sensor® signals. Selectable EOL resistor values simplify retrofits. A programmable LCD display interface and an ethernet port interface for remote programmability and monitoring add to flexibility and convenience.

Features:

• Power outputs are programmable as:

• 8 Class B NAC outputs;

• 4 Class A NAC outputs;

• Aux. power outputs (with or without battery backup);

• Any combination of the above

• Local and remote status monitoring (LCD display/Ethernet port)

• EOL resistor value is programmable by output

• Temporal Code 3, Steady Mode and Input to Output Follower Mode

• CO Temporal Code 4 (NFPA720) include Gentex ®, Potter and System Sensor® devices

• Thermal and short circuit protection with auto reset

• Signal circuit trouble memory - quickly locates intermittent system trouble and eliminates unnecessary service calls

• Synchronize up to twelve (12) FireSwitch108 units

• UL Listed in the U.S. and Canada for Fire Alarm Systems

• California State Fire Marshall Approved
