Multi-Voltage Vehicle Loop Detector EMX EMA-ULT-MVP
View Larger

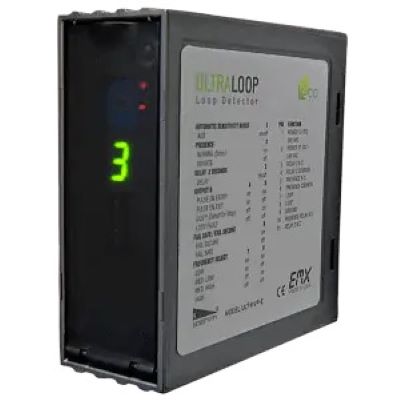

Multi-Voltage Vehicle Loop Detector

Item # EMA-ULT-MVP
Manufacturer Item # EMA-ULT-MVP

Log In To View
Prices

Sold As: ea
Special Order
EMX
More Products from EMX
  Add to Shopping List
  Save For Later
  Share

Overview

Multi-Voltage Vehicle Loop Detector
The ULTRALOOP® multi-voltage vehicle loop detector combines small size with a 12VDC to 240VAC input range. The ULT-MVP provides relay contact outputs indicating vehicle presence, and a second set of contacts that may be used for loop fault, pulse on entry /pulse on exit, or Detect-On-Stop™ (DOS®). The ULT-MVP features automatic sensitivity boost (ASB), 2 second delay, failsafe/fail-secure and infinite or normal (5 min.) presence.

Features:
  • Single or dual channel unit for US or EU wiring
  • ULTRAMETER™ displays optimum sensitivity setting/crosstalk interference
  • 10 sensitivity settings
  • 4 operating frequencies
  • Automatic sensitivity boost (ASB), delay, fail-safe/fail-secure and infinite or normal (5 min.) presence
  • Small size: 73 x 38 x 78mm
  • Socket mount -11 pin (JEDEC B11-88)
  • CE compliant
  • DETECT-ON-STOP™ allows detection only when a vehicle has come to a complete stop on the loop

Specifications

  Product NameMulti-Voltage Vehicle Loop Detector
  Brand NameEMX
  Mfg #EMA-ULT-MVP
  Cube10.79 cu in
  Length2.90 in
  Width1.20 in
  Height3.10 in
  Weight0.25 lbs
  ConnectivityWired
  Operating Voltage12 - 60 VDC / 12 - 240 VAC

Documents

EMA-ULT-MVP.pdf
