Home » Access & Intercom » Accessories

View Larger

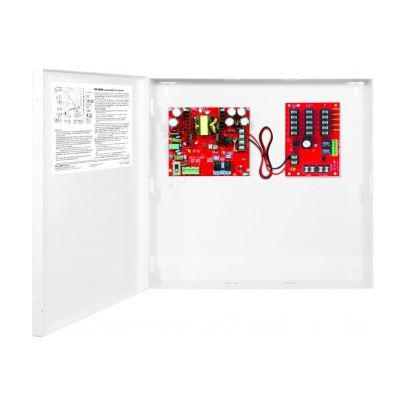

Access Control Power Supply - 5 Outputs 5A 12 VDC

Name: Access Control Power Supply - 5 Outputs 5A 12 VDC
Brand: Seco-Larm
SKU: EAP-5D5Q
Rating: 5 (1 reviews)

Item # EAP-5D5Q

Manufacturer Item # EAP-5D5Q

Sold As: EA
Special Order

More Products from Seco-Larm

Add to Shopping List

Save For Later

Overview

Access Control Power Supply - 5 Outputs 5A 12 VDC

Access Control Power Supply. 12 or 24 VDC output voltage. 5 Outputs, 5A@12VDC (2.5A@24VDC). Heavy-duty steel case.

Features:

AC power failure supervision relay
AC Power failure supervision relay
Battery failure / low battery supervision relay
DC Power failure supervision relay (EAP-5D5Q only)
Auxiliary output relay
Relays rated 3A@24VDC, 3A@120VAC
Adjustable voltage range to compensate for voltage drop
Built-in backup battery charger (battery not included)
Selectable 2.2k 9 End-of-Line (EOL) resistor for AC failure and
battery failure supervision relays via DIP switch
Selectable delay timer (5 seconds, 5 minutes, 5 hours) for AC
failure supervision relay via DIP switch
LED Status indicator for AC input, DC output and channel outputs

Specifications

Product Name	Access Control Power Supply - 5 Outputs 5A 12 VDC

Brand Name	Seco-Larm

Mfg #	EAP-5D5Q

Cube	1017.39 cu in

Length	14.81 in

Width	14.31 in

Height	4.13 in

Output Voltage	12 VDC

Outputs	5

Documents

EAP-5D5Q.pdf
