Home » Access & Intercom » Accessories

View Larger

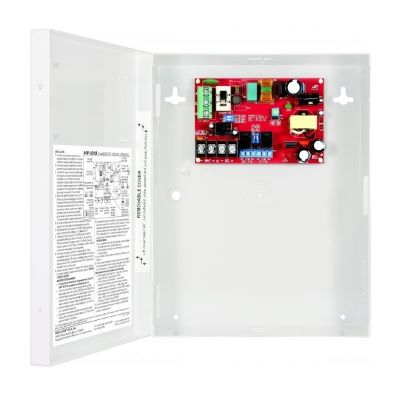

Access Control Power Supply in Enclosure

Name: Access Control Power Supply in Enclosure
Brand: Seco-Larm
SKU: EAP-1D1Q
Rating: 5 (1 reviews)

Item # EAP-1D1Q

Manufacturer Item # EAP-1D1Q

Sold As: ea
Special Order

More Products from Seco-Larm

Add to Shopping List

Save For Later

Overview

Access Control Power Supply in Enclosure

Access Control Power Supply in enclosure. 12 or 24 VDC output voltage. 1 Output, 1A@12VDC (1A@24VDC). Heavy-duty steel case.

Features:

Input 110~240 VAC, fused at 3.15A
Filtered and electronically regulated output
AC Input and DC output LED status indicators
Adjustable output voltage to compensate for voltage drop
AC power failure supervision relay
Overcurrent fuse-protected AC input
Automatic shutdown for overcurrent / short-circuit protection
12/24 VDC Outputs, field selectable
Battery failure / low battery supervision relay
Built-in back-up battery charger (Batteries not included)
Automatically switch to backup battery if AC fails
Selectable 2.2k< End-of-Line (EOL) resistor for AC failure and battery failure supervision relays
Selectable delay timer (5sec, 5min, 5h) for AC failure supervision relay via DIP switch

Specifications

Product Name	Access Control Power Supply in Enclosure

Brand Name	Seco-Larm

Mfg #	EAP-1D1Q

Cube	585 cu in

Length	7.75 in

Width	3.56 in

Height	10.06 in

Weight	4.11 lbs

Operating Voltage	12 / 24 VDC

Documents

EAP-1D1Q.pdf
