Home » Security » Intrusion Modules » Expanders

View Larger

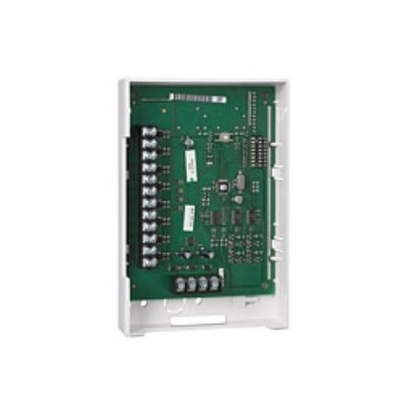

Wired Zone Expander 8 Zone

Name: Wired Zone Expander 8 Zone
Brand: Resideo
SKU: 4219
Rating: 5 (1 reviews)

Item # 4219

Manufacturer Item # 4219

Sold As: EA

More Products from Resideo

Add to Shopping List

Save For Later

Overview

Wired Zone Expander 8 Zone

Honeywell Home 4219 is an Addressable eight-zone expander for Honeywell Home ECP bus addressable systems.

Features:

Can be located anywhere along the four-wire addressable ECP bus
Simple DIP switch addressing to select range of zone numbers
Adds up to eight class B zone inputs to an ECP bus addressable system, each with 1K end-of-line resistors
Class B loops provide a broad, 300 ohm tolerance
Supervised for open, shorted and normal circuit conditions
UL Listed for commercial burglary applications

Specifications

Product Name	Wired Zone Expander 8 Zone

Brand Name	Resideo

Mfg #	4219

Cube	40.78 cu in

Length	6.43 in

Width	1.25 in

Height	4.25 in

Connectivity	Wired

Operating Voltage	12 VDC

Zones	8

Documents

4219.pdf
