Home » Security » Intrusion Modules » Wired to Wireless
Pixel Trans

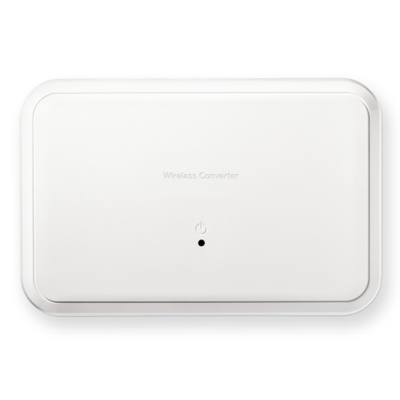

Wired to Wireless Converter for PROA7PLUS Resideo PROSIXC2W
View Larger

Wired to Wireless Converter for PROA7PLUS

Item # PROSIXC2W
Manufacturer Item # PROSIXC2W

Log In To View
Prices		 Pixel Silver
Sold As: ea
Special Order
Pixel Trans
Pixel Trans
Resideo
More Products from Resideo 		Pixel Silver
Product Shopping List  Add to Shopping List
Product Wish List  Save For Later
Pixel Trans
Report Incorrect
Pixel Trans

Overview

Pixel Trans
Wired to Wireless Converter for PROA7PLUS
Pixel Trans
The PROSIXC2W by Honeywell Home is a wired to wireless converted module for the PROA7PLUS alarm system allowing existing wired sensors to be connected to newer panels.  The PROSIXC2W allows wired sensors to connect to the device to be able to communicate with a PROA7PLUS.  Up to 8 zones can be set up to a single PROSIXC2W device.  ProSeries Wired ZN to WRLS module.

Features:
  • Reduce installation cost, time and material
  • 8 hardwired zones with end-of-line resistor protection – use with existing contacts, PIRs, glass breaks, and other 12V sensors. Not for use with fire, heat or CO sensors. It is recommended that any existing smoke, heat or CO detectors be replaced with new SiX Series detectors.
  • One-button calibration/activation of zone inputs
  • SiX technology MAC ID numbers are automatically assigned to activated zones
  • Power supply included to power PIRs. 12V 4AH battery provides four hours of standby. Low battery supervision and notification.
  • Case and wall tamper switches
  • Complete supervision of transmitters, zone tampers and low battery
  • Module can be mounted next to the control panel being replaced, or relocated if necessary to maximize wireless range

Specifications

Pixel Trans
  Product NameWired to Wireless Converter for PROA7PLUS
Pixel Silver
  Brand NameResideo
Pixel Silver
  Mfg #PROSIXC2W
Pixel Silver
  Cube248.77 cu in
Pixel Silver
  Length7.00 in
Pixel Silver
  Width1.50 in
Pixel Silver
  Height4.50 in
Pixel Silver
  ColorWhite
Pixel Silver
  ConnectivityWireless
Pixel Silver
  Country of OriginMX
Pixel Silver
  FamilyProSeries
Pixel Silver
  Operating Voltage5 VDC
Pixel Silver
  Transmission Band2.4 GHz
Pixel Silver
  UPC194160000106
Pixel Silver
  Zones8
Pixel Silver
Pixel Trans

Documents

Pixel Trans
Pdf PROSIXC2W.pdf
