Home » Security » Intrusion Modules » Expanders

View Larger

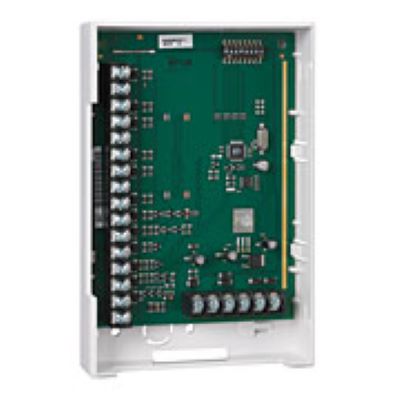

V-PLEX® Serialized Eight Zone Remote Point Module

Name: V-PLEX® Serialized Eight Zone Remote Point Module
Brand: Resideo
SKU: 4208SN
Rating: 5 (1 reviews)

Item # 4208SN

Manufacturer Item # 4208SN

Sold As: EA

More Products from Resideo

Add to Shopping List

Save For Later

Overview

V-PLEX® Serialized Eight Zone Remote Point Module

The 4208SN Remote Point Module (RPM) is an eight-zone expander that allows the use of available expansion zones on Honeywell Home VISTA controls that support V-Plex® polling loop devices.

Features:

Can be used on controls that support up to 250 zones
Can be optionally powered from an external DC power supply to reduce the amount of current draw from the polling loop
Uniquely identified eight EOLR supervised zones (all zones use 10K resistors, supplied)
Each zone is identified by a unique serial number, which is assigned via on-board DIP switches
Detects faults on all zones within 400ms of occurence
Loops A & B can be programmed for fast (10ms) response
Provides cover tamper protection, which may be enabled or disabled via on board DIP switches

Specifications

Product Name	V-PLEX® Serialized Eight Zone Remote Point Module

Brand Name	Resideo

Mfg #	4208SN

Cube	34.2 cu in

Length	1.25 in

Width	6.44 in

Height	4.25 in

Documents

4208SN.pdf
