Home » Fire » Horns & Strobes » Accessories

View Larger

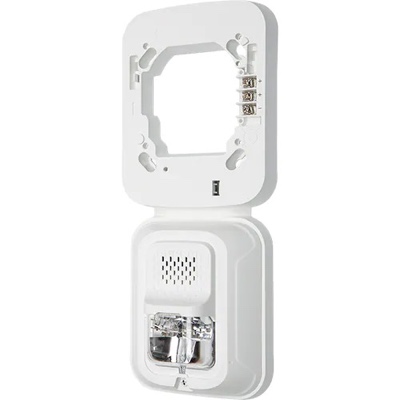

Universal Expander Plate Clear Lens Full Candela Range - White

Name: Universal Expander Plate Clear Lens Full Candela Range - White
Brand: System Sensor
SKU: SEP-SPSWL-P
Rating: 5 (1 reviews)

Item # SEP-SPSWL-P

Manufacturer Item # SEP-SPSWL-P

Sold As: ea
Special Order

More Products from System Sensor

Add to Shopping List

Save For Later

Overview

Universal Expander Plate Clear Lens Full Candela Range - White

The L-Series SEP-SPSWL-P is a PLAIN, clear lens, white strobe and speaker strobe expander plate (full candela range) back box skirt.

Features:

Meets DOD specification requirements
Field-selectable candela settings: 15, 30, 75, 95, 110, 135, 185 (please refer to
Equivalent Candela Rating for UL 1971 Table)
Automatic selection of 12- or 24-volt operation at 15 and 30 candela
Compatible with System Sensor synchronization protocol
Optional tamper-resistant Torx head screw included
Designed to be used in 12 or 24 volt, DC or FWR systems
Rated from 32°F to 120°F (0°C to 49°C)
SEP-SPSWL(-P) is compatible with: SPSWL(A), SPSWL(A)-P, SWL(A), SWL(A)-P, P2WL(A), P4WL(A)
Listed for wall mounting
SEP-SPSWL(-P) is compatible with colored lens kits (used over clear lenses): Lens-A2, LENS-B2, LENS-G2, LENS-R2, BZW-, BZSPW

Specifications

Product Name	Universal Expander Plate Clear Lens Full Candela Range - White

Brand Name	System Sensor

Mfg #	SEP-SPSWL-P

Cube	169.78 cu in

Length	2.40 in

Width	5.40 in

Height	13.10 in

Weight	0.8 lbs

Documents

SEP-SPSWL-P.pdf
