Home » Access & Intercom » Door Controllers & Software » Kits
Pixel Trans
TX3 Two Door Access Control Kit Mircom Technologies TX3-CX-2KA
View Larger

TX3 Two Door Access Control Kit

Item # TX3-CX-2KA
Manufacturer Item # TX3-CX-2K-A

Log In To View
Prices		 Pixel Silver
Sold As: EA
Special Order
Pixel Trans
Pixel Trans
Mircom Technologies
More Products from Mircom Technologies 		Pixel Silver
Product Shopping List  Add to Shopping List
Product Wish List  Save For Later
Pixel Trans
Report Incorrect
Pixel Trans

Overview

Pixel Trans
TX3 Two Door Access Control Kit
Pixel Trans

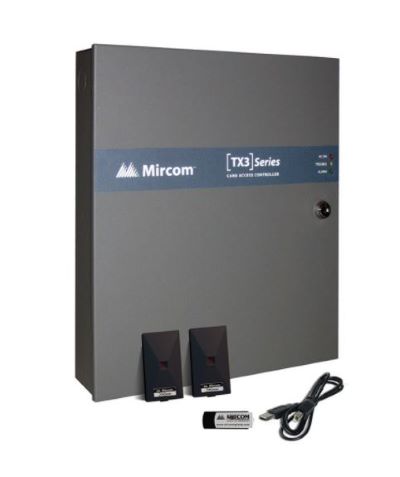

Mircom's TX3-CX-2K-A is a powerful hybrid IP and RS485 networked two-door controller that will manage up to 126 doors using the RS-485 network. The TX3-CX2K-A Kit comes complete with one TX3-CX door controller, two TX3-P300-HA proximity card readers, transformer, two graphic cards, a configurator software and a USB cable for programming.

Features:
  • A hybrid architecture that combines the best of TCP/IP and RS-485. All panels can be networked via RS-485 or TCP/IP
  • 8 supervised inputs for a wide selection of monitoring points to be shared between the two card readers
  • 8 programmable outputs; 6 are Form C contacts (normally open/normally closed), two provide 12VDC power for up to 1 amperes of current combined
  • Supports all credential formats such as clamshell cards, graphic cards, key tags and wafers (ordered separately)
  • Compatible to any Wiegand reader technology including Mifare, biometric, proximity and iClass
  • Elevator Control for up to 96 floors to restrict users to specific floors

Specifications

Pixel Trans
  Product NameTX3 Two Door Access Control Kit
Pixel Silver
  Brand NameMircom Technologies
Pixel Silver
  Mfg #TX3-CX-2K-A
Pixel Silver
  Cube21654 cu in
Pixel Silver
  Length12.00 in
Pixel Silver
  Width2.80 in
Pixel Silver
  Height14.00 in
Pixel Silver
  ConnectivitySerial
Pixel Silver
  Country of OriginCA
Pixel Silver
  Doors2
Pixel Silver
  FamilyTx3
Pixel Silver
  Harmonized Code8517.70.0000
Pixel Silver
  Operating Voltage16 VAC
Pixel Silver
  Physical FormatMetal Box
Pixel Silver
  Ports2
Pixel Silver
Pixel Trans

Documents

Pixel Trans
Pdf TX3-CX-2K-A.pdf
