Home » Access & Intercom » Locking Devices » Strikes

View Larger

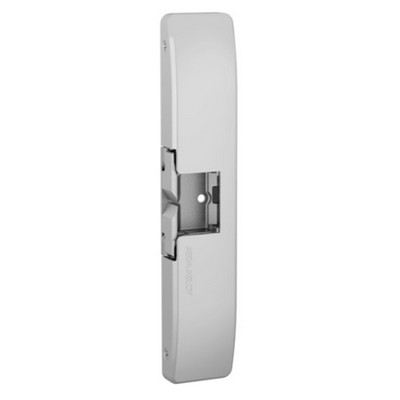

Surface Mounted Electric Strike

Name: Surface Mounted Electric Strike
Brand: Hes By Assa Abloy
SKU: 9600/630
Rating: 5 (1 reviews)

Item # 9600/630

Manufacturer Item # 9600-12/24D-630

Sold As: EA

More Products from Hes By Assa Abloy

Add to Shopping List

Save For Later

Overview

Surface Mounted Electric Strike

Also called: 9600-630 The 9600 Series is a windstorm rated, surface mounted electric strike designed to accommodate rim exit devices with a 3/4" throw latch. All components are completely encased within its 3/4" thick stainless steel housing, so no cutting on the frame is required for installation. Simply place the electric strike on the surface of the frame, align it with the exit latchbolt and install. It is field selectable for fail secure and fail safe operation, and for 12 or 24 VDC. The 9600 was the first surface mounted electric strike designed with the strength and durability required to exceed the severe forces of ANSI Windstorm testing.

Features:

Frame application: Metal or Wood
Tamper resistant
Static strength 2,000 lbs
Dynamic strength 120 ft-lbs
Field selectable fail safe/fail secure
Horizontal adjustability
Non-handed

Specifications

Product Name	Surface Mounted Electric Strike

Brand Name	Hes By Assa Abloy

Mfg #	9600-12/24D-630

Cube	62.72 cu in

Length	1.75 in

Width	0.75 in

Height	9.00 in

Door Frame	Metal / Wood

Environment	Outdoor

Finish	Satin Stainless Steel

Gap (In)	3/4" (19mm)

Holding Force (Lb)	2000

Lock Fail Config	Safe / Secure

Lock Type	Rim

Operating Voltage	12 VDC / 24 VAC

UPC	740090010175

Documents

9600-12-24D-630.pdf
