Supervised Remote Command Unit Microphone and Annunciator

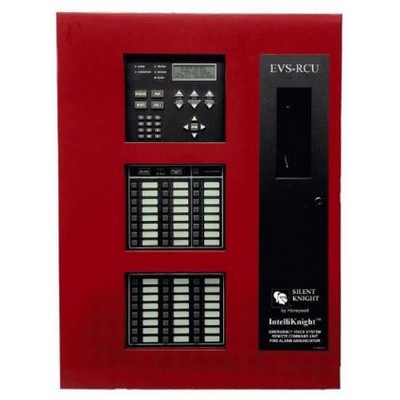

The EVS-RCU is a combination supervised remote microphone and annunciator which is compatible with the EVS-Series Emergency Voice System. The EVS-RCU meets UL requirements for a LOC. (Local Operator’s Console). The included Remote Voice Module provides an interface to the Emergency Voice System and a supervised microphone for live communications. The annunciator is capable of performing complete operation of the fire alarm system, including silencing and resetting.

Features:

• On-board supervised microphone
• Programmable trigger inputs from an external source, such as a Monaco system, to either the RVM or 5880. Up to eight inputs available on the 5880 module
• After the main panel unit, up to four EVS-RCU’s can be added to provide a total of five command units. The EVS-RCU meets the requirements for a LOC
• Up to 32 mappable speaker circuits using a combination of EVS-50W or EVS-125W’s and EVS-CE4’s mappable to 32 buttons controlling selected output groups
• All Call and Non-Active Call buttons to quickly select all active or all the non-active output groups
• Six-wire connection to EVS system; Two-wires for the voice bus, and four-wires for the SBUS connections
• UL 864 and UL 2572
