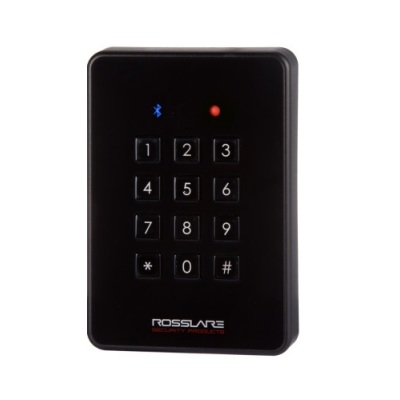

Smart Card Reader with Keypad and Rosslare NFC-ID™ and BLE-ID™ Rosslare Security Products AY-H6355BT
View Larger

Smart Card Reader with Keypad and Rosslare NFC-ID™ and BLE-ID™

Item # AY-H6355BT
Manufacturer Item # AY-H6355BT

Log In To View
Prices		 Pixel Silver
Sold As: ea
Special Order
Pixel Trans
Pixel Trans
Rosslare Security Products
More Products from Rosslare Security Products 		Pixel Silver
Product Shopping List  Add to Shopping List
Product Wish List  Save For Later
Product Bookmark  Share
Report Incorrect
Pixel Trans

Overview

Pixel Trans
Smart Card Reader with Keypad and Rosslare NFC-ID™ and BLE-ID™
Pixel Trans
The AY-H6355BT reader from Rosslare’s CSN SMART™ series features support for four types of credentials ( Rosslare BLE-ID™, Rosslare NFC-ID™, backlit PIN code, and 13.56 MHz RFID contactless UID). Featuring IP-65 (all weather potted) construction, it is ideal for general  purpose access control installations that want to take advantage of the latest convenience and flexibility features of mobility.

Features:
  • NFC-ID is supported with Rosslare’s APP-A415 NFC-ID Credential App for Android in Host Card Emulation (HCE) mode*
  • BLE-ID is supported with Rosslare BLE-ID Credential apps for iOS and Android OS*
  • Eight keypad transmission formats are available
  • Mounting options for US gang-box
  • Programmable using configuration cards made with the CS-CCT Hardware Configuration Tool for Windows 10 and the DR-6255 desktop reader/programmer
  • Reads the CSN from the following smart cards:
        ▪ ISO14443A - MIFARE® Ultralight® Nano /Ultralight EV1/ Ultralight C
            - MIFARE Classic®/ Classic EV1
            - MIFARE Plus®S / SE / X / EV1
            - MIFARE DESFire® EV1 / EV2
            - NFC N–TAG / Card Emulation
        ▪ ISO14443B – China National ID
        ▪ ISO15693 – HID® iClass® , PicoPass, iCode, LEGIC
        ▪ ISO18092 – SONY® FeliCa® (Hong Kong Octopus)

Specifications

Pixel Trans
  Product NameSmart Card Reader with Keypad and Rosslare NFC-ID™ and BLE-ID™
Pixel Silver
  Brand NameRosslare Security Products
Pixel Silver
  Mfg #AY-H6355BT
Pixel Silver
  Cube30 cu in
Pixel Silver
  Length3.00 in
Pixel Silver
  Width0.70 in
Pixel Silver
  Height4.40 in
Pixel Silver
  Weight0.42 lbs
Pixel Silver
  Bits26
Pixel Silver
  TechnologyMifare / Mifare Plus / DESFire EV1 / EV2 /FeliCa/HID Iclass/NFC/Mifare Ultralight/China National ID
Pixel Silver
Pixel Trans

Documents

Pixel Trans
Pdf AY-H6355BT-Datasheet.pdf
