Home » Fire » Modules » Input Module

View Larger

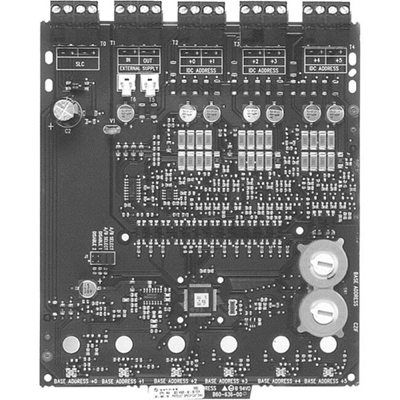

Six-Zone Interface Module

Name: Six-Zone Interface Module
Brand: Fire-Lite Alarms By Honeywell
SKU: MMF-302-6
Rating: 5 (1 reviews)

Item # MMF-302-6

Manufacturer Item # MMF-302-6

Sold As: EA
Special Order

More Products from Fire-Lite Alarms By Honeywell

Add to Shopping List

Save For Later

Overview

Six-Zone Interface Module

Fire-Lite’s MMF-302-6 six-zone interface module provides an interface between all Fire-Lite addressable panels and a two-wire conventional detection zone. A common SLC input is used for all modules, and the initiating device circuits share a common external supervisory supply and ground.

Features:

Six addressable Class B or three addressable Class A initi-ating device circuits
Removable 12 AWG (3.1 mm²) to 18 AWG (0.78 mm²) plug-in terminal blocks
Status indicators for each point
Unused addresses may be disabled
Rotary address switches
Class A or Class B operation
LiteSpeed or CLIP operation
Mount one or two modules in a BB-2F cabinet (optional)
Mount up to six modules on a CH-6 chassis in a BB-6F cab-inet (optional)
Mounting hardware included

Specifications

Product Name	Six-Zone Interface Module

Brand Name	Fire-Lite Alarms By Honeywell

Mfg #	MMF-302-6

Cube	248.06 cu in

Length	6.80 in

Width	5.80 in

Height	1.28 in

Connectivity	Wired

Operating Voltage	15 - 32 VDC

UPC	783863019876

Documents

MMF-302-6.pdf
