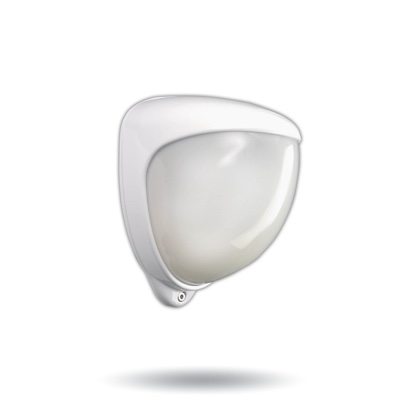

SiteWatch™ IP-enabled quad PIR 98.5ft (30m) volumetric motion detector

The DW-DTPIRIPW is a quad-element passive infra-red (PIR) external movement detector that combines advanced signal processing and unique optical systems. The detector’s quad PIR sensing module is equipped with two (2) volt-free and two (2) negative-switched outputs with a programmable beam range of up to 98.5ft (30m), avoiding boundary overspill and offering truly exceptional resistance to false alarms. Using PoE and IP communication, the DW-DTPIRIPW supports direct integration with DW Spectrum® IPVMS, all major VMS and camera systems on the market.

Features:

• External movement detector
• Quad-element PIR sensor
• Two (2) volt-free outputs
• Two (2) negative-switched outputs
• Programmable beam-range of up to 98.5ft (30m)
• Exceptional resistance to false alarms
• Advanced signal processing, quad-pyro and optical systems
• Trigger lights and smart devices when movement is detected
• 10° - 70° detection angle
• Direct integration with DW Spectrum® IPVMS
• Intruder notifications
• Set up lux-level events to operate blinds and curtains
• Environmental temperature monitoring to help manage internal air conditioning and heating
• Web interface built-in
• PoE class 1 and DC48V
• IP65 environmental-rated dust-tight and water-protected
