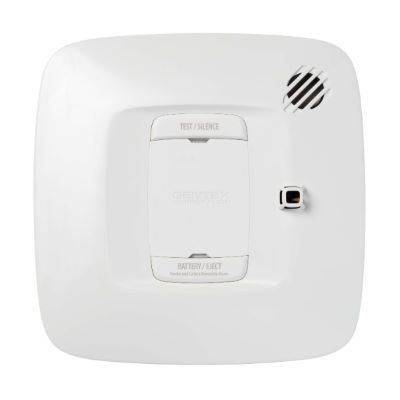

Single/Multiple Station Smoke/Carbon Monoxide Alarm - Form A/C Relay Contacts Gentex Corp. GEN-SCR
View Larger

Single/Multiple Station Smoke/Carbon Monoxide Alarm - Form A/C Relay Contacts

Item # GEN-SCR
Manufacturer Item # SCR

Log In To View
Prices		 Pixel Silver
Sold As: ea
Pixel Trans
Pixel Trans
Gentex Corp.
More Products from Gentex Corp. 		Pixel Silver
Product Shopping List  Add to Shopping List
Product Wish List  Save For Later
Pixel Trans
Report Incorrect
Pixel Trans

Overview

Pixel Trans
Single/Multiple Station Smoke/Carbon Monoxide Alarm - Form A/C Relay Contacts
Pixel Trans
120 VAC/9V, Single/Multiple station Smoke/Carbon monoxide alarm, universal mount, temporal 3 and temporal 4 audible signal, form A/C relay contacts.

Features:
  • S/SR/STRR/SHRR/SC/SCR/SCRR/C/CR/H: available in 120VAC models with 9V battery back-up
  • S/SR/STRR/SCRR/SC/SCR/SHRR/S220/SR220 feature multi-criteria smoke sensing including photoelectric light scattering sensing technology.
  • SC/SCR/SCRR/SHRR/C/CR feature electrochemical CO sensing technology
  • Horn frequency 3100 Hz (nominal)
  • Temporal 3 evacuation signal pattern for smoke and heat annunciation
  • Temporal 4 signal pattern for CO annunciation
  • 85 dBA evacuation piezo horn
  • Nominal 2.5% sensitivity
  • Programmable relay operation
  • 8 hour alarm memory
  • Push button self test feature
  • Push button functional test feature
  • Relays operate on battery back-up
  • Quick-disconnect wiring harness
  • Front loading battery drawer
  • Interconnect with Gentex tandem capable smoke alarms
  • Non-latching (self restoring) alarm
  • Pulsing LED sensing chamber
  • Fully insect screened
  • Red LED pulses every 16 seconds, green LED for AC power on
  • Mounting hardware adapts to standard junction boxes
  • Dust cover to prevent contamination during installation
  • Low or missing battery indicator
  • One year warranty from date of purchase
  • 10-year end-of-life indicator

Specifications

Pixel Trans
  Product NameSingle/Multiple Station Smoke/Carbon Monoxide Alarm - Form A/C Relay Contacts
Pixel Silver
  Brand NameGentex Corp.
Pixel Silver
  Mfg #SCR
Pixel Silver
  Cube52.94 cu in
Pixel Silver
  Operating Voltage120 VAC
Pixel Silver
  UPC700217047149
Pixel Silver
Pixel Trans

Documents

Pixel Trans
Pdf SCR-Datasheet.pdf
