Home » Security » Visual / Sounding Devices » Speakers

View Larger

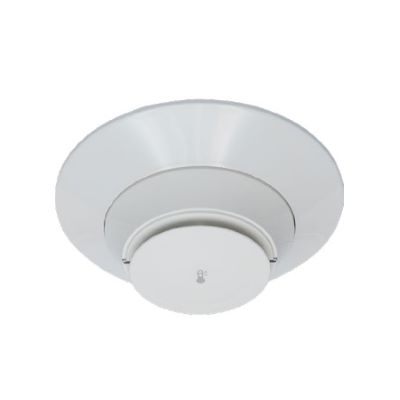

Addressable 135°F Fixed Thermal Detector - White

Name: Addressable 135°F Fixed Thermal Detector - White
Brand: Silent Knight By Honeywell
SKU: IDP-HEAT-W
Rating: 5 (1 reviews)

Item # IDP-HEAT-W

Manufacturer Item # IDP-HEAT-W

Sold As: ea
Special Order
Export Only

More Products from Silent Knight By Honeywell

Add to Shopping List

Save For Later

Overview

Addressable 135°F Fixed Thermal Detector - White

Addressable thermal detector fixed temperature 135°F, white.

Features:

Sleek and stylish contemporary design
Advanced thermal technology for fast response
Addressable by device
Two-wire SLC connection
Visible LEDs “blink” every time the unit is addressed
Built-in tamperresistant feature
360°-field viewing angle of the visual alarm indicators (two bi-color LEDs). LEDs blink green in Normal condition and turn on steady red in Alarm.
Integral communications and built-in device-type identification
Remote test feature from the panel
Built-in functional test switch activated by external magnet
Walk test with address display (an address of 121 will blink the detector LED 12- (pause)-1)
Low standby current
Designed for direct surface or electrical box mounting
Sealed against back pressure
Plugs into separate base for ease of installation and maintenance
SEMS screws for wiring of the separate base
Optional remote, single- gang LED accessory

Specifications

Product Name	Addressable 135°F Fixed Thermal Detector - White

Brand Name	Silent Knight By Honeywell

Mfg #	IDP-HEAT-W

Cube	76.88 cu in

Color	White

Heat Detection Type	FIXED 135 °F (57 °C)

Operating Voltage	15 - 32 VDC

Documents

IDP-HEAT-W.pdf
