Home » Access & Intercom » Door Controllers & Software » Accessories

View Larger

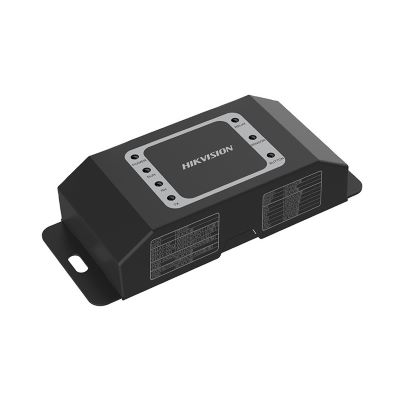

Secure Door Control Unit 12 VDC

Name: Secure Door Control Unit 12 VDC
Brand: Hikvision
SKU: DS-K2M061
Rating: 5 (1 reviews)

Item # DS-K2M061

Manufacturer Item # DS-K2M061

Sold As: ea
Special Order

More Products from Hikvision

Add to Shopping List

Save For Later

Overview

Secure Door Control Unit 12 VDC

DS-K2M061 Secure Door Control Unit is the interlayer between the access control terminal and the lock, including the door magnet, the lock, the exit button and so on. It can be applied to keep the door closed when the door is damaged.

Features:

Communicates with the access control terminal via RS-485 to execute the commands from the terminal including open door, close door, normally open and normally closed
Collects the door magnetic signal, the exit button signal and the tamper-proof signal and send them to the access control terminal
Supports tampering alarm
Supports RS-485 communication indicators to show the communication status
4-ch DIP switch supporting ID No. configuration
Supports a Wiegand interface to connect a Wiegand card reader to enter/exist access control terminal by swiping card
Fire interface and exit button linkage

Specifications

Product Name	Secure Door Control Unit 12 VDC

Brand Name	Hikvision

Mfg #	DS-K2M061

Cube	33 cu in

Length	4.50 in

Width	1.90 in

Height	1.00 in

Connectivity	Wired

Doors	1

Environment	Indoor

Operating Voltage	12 VDC

Ports	3

Documents

DS-K2M061.pdf
