Home » Access & Intercom » Keypads » Stand Alone

View Larger

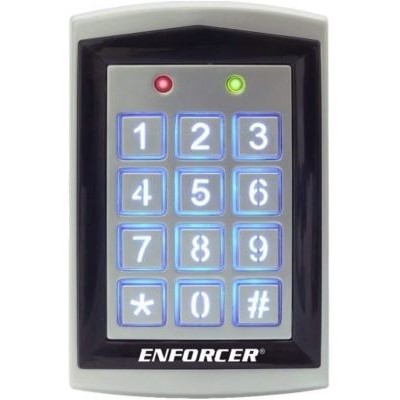

Sealed Housing Outdoor Stand Alone Keypad with Prox

Name: Sealed Housing Outdoor Stand Alone Keypad with Prox
Brand: Seco-Larm
SKU: SK-1323-SPQ
Rating: 5 (1 reviews)

Item # SK-1323-SPQ

Manufacturer Item # SK-1323-SPQ

Sold As: EA

More Products from Seco-Larm

Add to Shopping List

Save For Later

Overview

Sealed Housing Outdoor Stand Alone Keypad with Prox

The SK-1323-SPQ is a sealed-housing outdoor stand-alone keypad with Built-In Proximity Reader (125kHz). Weatherproof (IP65), backlit keys, 1,010 user codes, 2~6 digit code length, two relay outputs (Form C NO/NC/COM), two egress inputs, one door sensor input, optical tamper sensor, fully-epoxied circuitry for outdoor use, proximity cards sold separately (see model PR-K1S1-A or PR-K1K1-AQ).

Features:

12~24 VAC/VDC operation
1,010 Users (Output #1: 1,000 users, Output #2: 10 users)
2 Form C relays, each rated 1 Amp @ 30VDC
Each relay has programmable output time from 1~99 seconds or toggle
Output #2 can be programmed for use with a doorbell
2 Egress inputs and 1 door sensor input
Backlit keys for easy nighttime use
Two multi-colored status LEDs
Able to mount to a single-gang back box
3 Programmable access modes for Output #1: Card Only, Card or Code, and Card with Code
Output #2 may have either a card or a code programmed for each user

Specifications

Product Name	Sealed Housing Outdoor Stand Alone Keypad with Prox

Brand Name	Seco-Larm

Mfg #	SK-1323-SPQ

Cube	72.22 cu in

Length	3.00 in

Width	0.88 in

Height	4.75 in

Weight	1 lbs

Color	Satin Ss

Country of Origin	CN

Doors	1

Environment	Outdoor

Finish	Rugged Aluminum

Harmonized Code	8537.10.9160

Installation	Surface

Operating Voltage	12 VDC / 24 VAC

Rating	IP65

Technology	Pin + Prox

Transmission Band	125 kHz

UPC	676544011071

User Capacity	1000

Documents

SK-1323-SPQ.pdf
