Home » Infrastructure » Connectors & Plates » Coax

View Larger

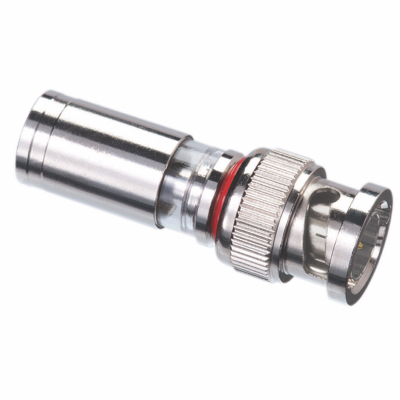

RG59 BNC Compression Connector

Name: RG59 BNC Compression Connector
Brand: Ideal
SKU: 89-5047
Rating: 5 (1 reviews)

Item # 89-5047

Manufacturer Item # 89-5047

Sold As: Pack of 35

Minimum Qty: 35

Special Order

More Products from Ideal

Add to Shopping List

Save For Later

Overview

RG59 BNC Compression Connector

BNC compression connector for RG-59 coax cables. InSITE™ technology to verify cable is fully seated in the connector before compression. Simplifies security camera installations.

Features:

Nickel plated brass external construction with gold plated fixed center pin contact
InSITE™ window allows verification of proper cable insertion before compressing the connector
3GHZ, 75 Ohm rated for use in all video based applications such as security cameras and video distribution
Fits cables with 0.230" - 0.250" jacket diameter
Fits cables with 0.142" - 0.148" dielectric diameter
Fits cables with 23-18 AWG solid center conductor
Requires industry standard ¼" x ¼" cable preparation

Specifications

Product Name	RG59 BNC Compression Connector

Brand Name	Ideal

Mfg #	89-5047

Cube	33 cu in

Connector	BNC

Impedance (Ohms)	75

UPC	783250689408

Wire Construction	RG59

Documents

89-5047.pdf
