Home » Fire » Power Supplies & Accessories » Conventional Power Supplies

View Larger

Remote 4-Output NAC Extender- Small Housing

Name: Remote 4-Output NAC Extender- Small Housing
Brand: Napco
SKU: GEMC-NAC7S
Rating: 5 (1 reviews)

Item # GEMC-NAC7S

Manufacturer Item # GEMC-NAC7S

Sold As: EA

More Products from Napco

Add to Shopping List

Save For Later

Overview

Remote 4-Output NAC Extender- Small Housing

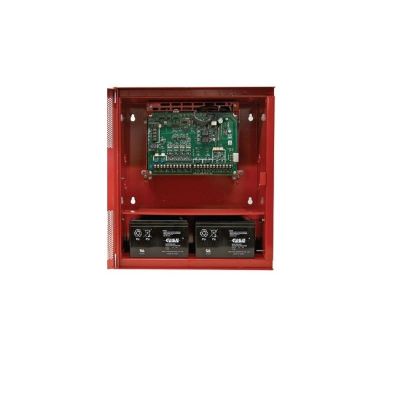

Remote NAC Extender. Provides (4) NAC Outputs for a combined output rating of 6.5A, or a max of 2A on any one output. Includes red enclosure (14"x16"), must be direct connected to 120VAC source, supports max of 14AH standby batteries ( (2) pair 12V,7AH batteries). Connects to GEM-C Fire Bus and is fully supervised. Any or all NAC outputs may be configured as remote power supply outputs. Supports Wheelock and System Sensor NAC synchronization. Maximum of (5) GEMC-NAC7S modules may be added to GEM-C control panel allowing for a maximum of 20 additional NAC circuits.
May also be used universally as NAC extender on any UL approved FACP; provides input triggers and trouble outputs.

Specifications

Product Name	Remote 4-Output NAC Extender- Small Housing

Brand Name	Napco

Mfg #	GEMC-NAC7S

Cube	1197 cu in

Documents

GEMC-NAC7S.pdf
