Home » Fire » Modules » Relay Module » Addressable

View Larger

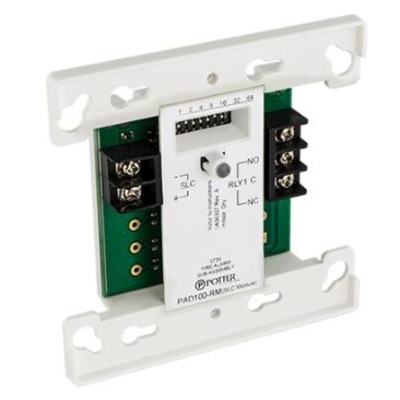

Relay Module for ARC / AFC Series

Name: Relay Module for ARC / AFC Series
Brand: Potter
SKU: PAD 100-RM
Rating: 5 (1 reviews)

Item # PAD 100-RM

Manufacturer Item # PAD 100-RM

Sold As: EA

More Products from Potter

Add to Shopping List

Save For Later

Overview

Relay Module for ARC / AFC Series

The PAD100-RM uses one (1) SLC loop address to provide one (1) Form C relay contact. The module mounts on either a 4" square or double gang box. The PAD100-RM includes one red LED to indicate the module's status. In normal condition, the LED flashes when the device is being polled by the control panel.

Features:

One (1) Form C relay contact
SLC Class A, Class X & Class B
Mounts in a standard 4" or double gang box
Wiring terminals accessible when mounted in box
All wiring terminals accept 22 to 12 AWG
Product includes a 5-year warranty
UUKL Listed for Smoke Control

Specifications

Product Name	Relay Module for ARC / AFC Series

Brand Name	Potter

Mfg #	PAD 100-RM

Cube	25.31 cu in

Length	4.17 in

Width	1.14 in

Height	4.17 in

Operating Voltage	24 VDC

Outputs	1

Documents

PAD 100-RM.pdf
