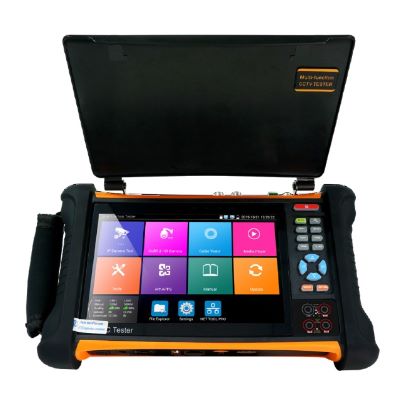

Name: Professional All-in-One tester for CCTV installations and troubleshooting.
Brand: Avycon
SKU: AIVO-70A8KM
Rating: 5 (1 reviews)

Overview

Professional All-in-One tester for CCTV installations and troubleshooting.

Professional All-in-One tester for CCTV installations and troubleshooting.

Features:

7 inch retina touch screen, 1920*1200 resolution
H.265 & H.264 IP, 8K video display via mainstream
8MP TVI / CVI / AHD test, 3840x2160P 15fps, 4x zoom, video record & playback, coaxial PTZ control & call OSD menu and presets
Rapid ONVIF, Auto log in and display image, create testing report
Pre-loaded viewing apps including AVYCON, Axis, Dahua, Hikvision, UNV, and etc.
CVBS camera test and PTZ control
IPC TEST (Non-ONVIF test), HIK test tool (Hikvision camera), DH test tool (Dahua camera)
Video level meter, peak video signal level, SYNC signal level, Color bar chroma level measurement
DC24V/2A, DC12V/3A power output, power directly from the tester
DC48V PoE Power output, power directly from the tester
Rapid video, just by one key to detect all network cameras and auto display
Built in Wi-Fi, display image from the wireless camera, create Wi-Fi hotspot
RJ45 cable TDR test, test cable pair status, length, attenuation, reflectivity, impedance, skew, and etc.
Cable tracer to trace coaxial, twisted, and unshielded twisted pair cables
Network tool: Ping, IP scan, Port Flash, DHCP server, Trace Route
8GB microSD card pre-installed
7.6V / 7800mAh Lithium Ion Polymer Battery 3.5 hours quick charge, up to 16 hours of battery life

Specifications

Product Name	Professional All-in-One tester for CCTV installations and troubleshooting.

Brand Name	Avycon

Mfg #	AIVO-70A8KM

Cube	143 cu in

Length	9.44 in

Width	1.81 in

Height	6.06 in

Operating Voltage	12 VDC / POE

Professional All-in-One tester for CCTV installations and troubleshooting.
