8-Door Altronix/Paxton Access and Power Integration Kit Altronix T2PXK7F8
View Larger

8-Door Altronix/Paxton Access and Power Integration Kit

Item # T2PXK7F8
Manufacturer Item # T2PXK7F8

Log In To View
Prices
Pixel Silver
Sold As: ea
Special Order
Pixel Trans
Pixel Trans
Altronix
More Products from Altronix
Pixel Silver
Product Shopping List  Add to Shopping List
Product Wish List  Save For Later
Report Incorrect
Pixel Trans

Overview

Pixel Trans
8-Door Altronix/Paxton Access and Power Integration Kit
Pixel Trans

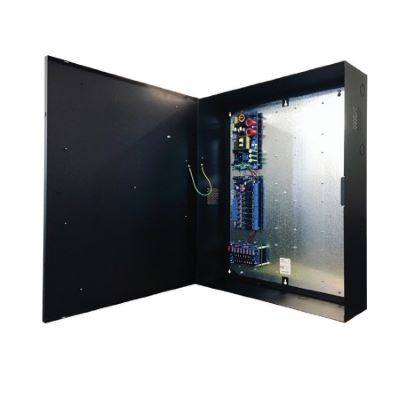

Altronix T2PXK7F8 kit consists of Trove2 enclosure, TPX2 Paxton/Altronix backplane with one (1) 24VDC @ 10A power supply/charger, one (1) fused access power controller, one (1) voltage regulator and one (1) dual input fused power distribution module.
This kit also accommodates up to eight (8) Paxton Net2 Plus modules for up to eight (8) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.

Features:
  • 24VDC @ 10A power supply charger
  • Accommodates the following Paxton modules: Net2 Plus, Paxton10
  • Convenient knockout configuration:
      - One (1) single knockout 2.415" (2” Conduit)
      - Sixteen (16) double knockouts 1.362" (1" Conduit) / 1.115" (3/4" Conduit)
  • 16 AWG galvanized steel backplane simplifies board layout and wire management
  • Supervision
       - AC Fail
  • Supervision
      - Low Battery and Battery Presence
      - Low power shutdown
  • Agency Listings:
      - All Altronix components of this Trove kit are UL Listed sub-assemblies. Please refer to the Sub-Assembly Installation Guides for further information.
      - UL: UL294 - Access Control System
      - cUL: CAN/ULC - s319-05 - Electronic Access Control Systems
      - CE European Conformity
  • Enclosure accommodates up to four (4) 12VDC/12AH batteries

Specifications

Pixel Trans
  Product Name8-Door Altronix/Paxton Access and Power Integration Kit
Pixel Silver
  Brand NameAltronix
Pixel Silver
  Mfg #T2PXK7F8
Pixel Silver
  Cube3808.19 cu in
Pixel Silver
  Length21.50 in
Pixel Silver
  Width6.50 in
Pixel Silver
  Height27.25 in
Pixel Silver
  Weight54.3 lbs
Pixel Silver
  Current (A)10
Pixel Silver
  Operating Voltage120 VAC
Pixel Silver
  Output Voltage24 VDC
Pixel Silver
Pixel Trans

Documents

Pixel Trans
Pdf T2PXK7F8.pdf
