Home » Power & Batteries » Power Accessories » Timers

View Larger

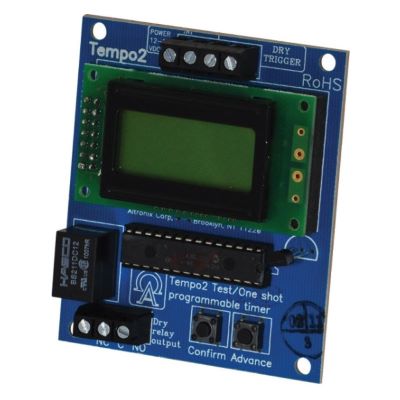

Universal 2 Stage Timer, 12-24 VAC/VDC

Name: Universal 2 Stage Timer, 12-24 VAC/VDC
Brand: Altronix
SKU: TEMPO2
Rating: 5 (1 reviews)

Item # TEMPO2

Manufacturer Item # TEMPO2

Sold As: EA

More Products from Altronix

Add to Shopping List

Save For Later

Overview

Universal 2 Stage Timer, 12-24 VAC/VDC

Tempo2 is a universal two stage timer for applications that require timed operations. A delayed egress feature will trigger a 1 to 60 second door release. Applications include daily/weekly test mode, one shot, door prop alarm, timed door annunciate, cut-off timer, alarm swinger eliminator, etc. Digital display facilitates ease of programming and real time information.

Features:

12 to 24 volts AC or DC operation voltage
Triggers via dry contact
Dry form "C" contacts are rated @ 2A/120VAC/28VDC
Current draw: stand-by 15mA, relay energized 30mA
Simple programming. One-Shot Features (trigger activated):
Programmable relay activation at the start or end of the timing cycle
a) Delayed Pulse Mode:
1 to 60 sec. programmable pulse at the end of timing cycle.
b) Delay Mode:
Relay can be programmed to energize or de-energize during timing cycle (Digitally adjust from 1 sec. -24hours).
EE Prom memory protects against loss of programming due to power failure

Specifications

Product Name	Universal 2 Stage Timer, 12-24 VAC/VDC

Brand Name	Altronix

Mfg #	TEMPO2

Cube	5.63 cu in

Length	3.00 in

Width	2.50 in

Height	0.75 in

Weight	0.65 lbs

Operating Voltage	12 / 24 VAC/VDC

Documents

TEMPO2.pdf

Array ( [qbi_imported] => 0 [vendors_product_price] => 0.0000 [products_reviews] => 0 [products_rating] => 0.00 [products_source] => 0 [products_delivery_time] => [products_free_shipping] => 1 [products_sold_as] => EA [products_pieces] => 1 [products_shipping_terms] => [international_items] => [products_ship_from] => [products_per_pallet] => 0 [products_per_halftruck] => 0 [products_per_truck] => 0 [products_per_pallet_id] => 0 [products_per_halftruck_id] => 0 [products_per_truck_id] => 0 [products_cube] => 5.63 [products_pdf] => [products_width] => 2.50 [products_height] => 0.75 [products_depth] => 3.00 [products_width_built] => 2.50 [products_height_built] => 0.75 [products_depth_built] => 3.00 [products_weight_built] => 0.65 [products_warranty] => [products_suggested_price] => 0.0000 [products_price_vary] => 0 [products_weight] => 1.25 [products_id] => 137770 [products_name] => Universal 2 Stage Timer, 12-24 VAC/VDC [products_description] => Tempo2 is a universal two stage timer for applications that require timed operations. A delayed egress feature will trigger a 1 to 60 second door release. Applications include daily/weekly test mode, one shot, door prop alarm, timed door annunciate, cut-off timer, alarm swinger eliminator, etc. Digital display facilitates ease of programming and real time information.

Features:

12 to 24 volts AC or DC operation voltage
Triggers via dry contact
Dry form "C" contacts are rated @ 2A/120VAC/28VDC
Current draw: stand-by 15mA, relay energized 30mA
Simple programming. One-Shot Features (trigger activated):
Programmable relay activation at the start or end of the timing cycle
a) Delayed Pulse Mode:
1 to 60 sec. programmable pulse at the end of timing cycle.
b) Delay Mode:
Relay can be programmed to energize or de-energize during timing cycle (Digitally adjust from 1 sec. -24hours).
EE Prom memory protects against loss of programming due to power failure

[products_header] => [products_footer] => [products_model] => TEMPO2 [product_brand] => 30E [products_qr_image] => products/qr_codes/137770.png [vendors_prod_id] => [manuf_prod_id] => TEMPO2 [vendors_prod_id_show] => 0 [products_quantity] => 16 [products_image] => products/small/TEMPO2.jpg [products_image_med] => products/medium/TEMPO2.jpg [products_image_lrg] => products/large/TEMPO2.jpg [products_image_sm_1] => [products_image_xl_1] => [products_image_sm_2] => [products_image_xl_2] => [products_image_sm_3] => [products_image_xl_3] => [products_image_sm_4] => [products_image_xl_4] => [products_image_sm_5] => [products_image_xl_5] => [products_image_sm_6] => [products_image_xl_6] => [products_image_sm_7] => [products_image_xl_7] => [products_image_sm_8] => [products_image_xl_8] => [products_image_sm_9] => [products_image_xl_9] => [products_image_sm_10] => [products_image_xl_10] => [products_image_sm_11] => [products_image_xl_11] => [products_image_sm_12] => [products_image_xl_12] => [products_caption_1] => [products_caption_2] => [products_caption_3] => [products_caption_4] => [products_caption_5] => [products_caption_6] => [products_caption_7] => [products_caption_8] => [products_caption_9] => [products_caption_10] => [products_caption_11] => [products_caption_12] => [products_video] => [products_url] => [products_price] => 50.0300 [products_tax_class_id] => 0 [products_date_added] => 2021-01-12 10:24:47 [products_date_available] => 0000-00-00 00:00:00 [products_date_order_due] => 0000-00-00 00:00:00 [manufacturers_id] => 2 [manufacturers_name] => Altronix [manufacturers_image] => manufacturers/Altronix logo.jpg [extra_fields_tab] => 0 [products_comments] => [products_comments_desc] => )
