Home » Power & Batteries » Surge Suppression » CCTV

View Larger

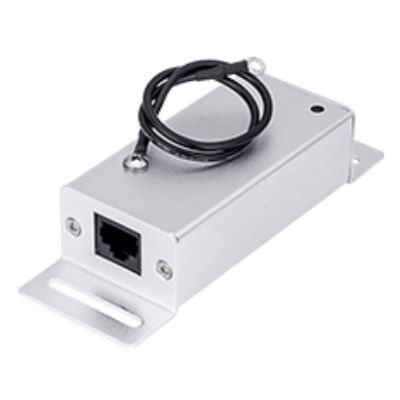

PoE Surge Protector Against Lightning or Transient Voltage

Name: PoE Surge Protector Against Lightning or Transient Voltage
Brand: Vivotek
SKU: AT-PSP-001
Rating: 5 (1 reviews)

Item # AT-PSP-001

Manufacturer Item # AT-PSP-001

Sold As: ea
Special Order

More Products from Vivotek

Add to Shopping List

Save For Later

Overview

PoE Surge Protector Against Lightning or Transient Voltage

AT-PSP-001 is a surge protection device to provide Signal/Power path and surge protection capability. It employed our patented surge blocker with shunt devices and parallel devices to guarantee the safety of your device, even there is no secondary protection on your board. Additionally, the operation indicator will turn on while protector being out of life.

Features:

Operation DC Voltage: 60V
Common Mode Discharge Current (8/20us): 8KA
Differential Mode Discharge Current (8/20us): 1KA
Common Mode Protection Level (10/700us): 20KV
Differential Mode Protection Level (10/700us): 4KV
Max DC Current: 1A for 2 pair, 2A for 4 pair

Specifications

Product Name	PoE Surge Protector Against Lightning or Transient Voltage

Brand Name	Vivotek

Mfg #	AT-PSP-001

Cube	7.26 cu in

Length	4.72 in

Width	1.57 in

Height	0.98 in

Documents

AT-PSP-001.pdf
