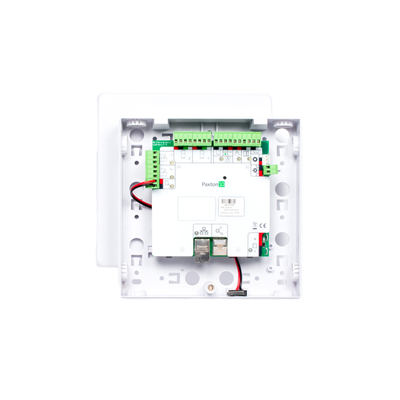

The 010-315-US Paxton10 Door Controller – Plastic Enclosure provides a versatile solution for Paxton10 where centralized or low voltage power is already available. Paxton10 Door Controllers are the building blocks of the Paxton10 system. Each one provides control of a single door and a port to allow support for up to three Paxton10 Wireless Connectors for additional functionality. A single Paxton10 system can include up to 1000 door controllers. The Paxton10 door controller is a network device that communicates over TCP/IP and can be integrated into an existing network infrastructure.
PoE+ – The Paxton10 PoE+ Door Controller is equipped with a built-in PoE+ splitter, with which it is possible to supply the door controller and door lock via PoE+, so no 230v connection is required at the door. We recommend using a TCP/IP network switch with PoE+ output. It is also possible to place a backup battery in the Paxton10 PoE+ Door Controller, if you want an extra backup in case of power failure, we recommend placing the switch behind a UPS.
The door controller is equipped with 4 inputs, tamper, 230v fail, door contact and RTE.
An intruder alarm can be integrated using the Paxton10 Alarm Connector.
Mains and Power over Ethernet (PoE) powered options also available. This product is also available as a PCB only, without plastic enclosure.
Features:
- Controls a single door and provides additional I/O for general use
- Connector port to cascade up to three Paxton10 connectors
- Housed in a small plastic enclosure
- Distributed intelligence architecture, no central point of failure
- Two reader inputs for read in/read out control
- Connector port to cascade up to three Paxton10 Wireless Connectors
