Home » Access & Intercom » Keypads » Stand Alone

View Larger

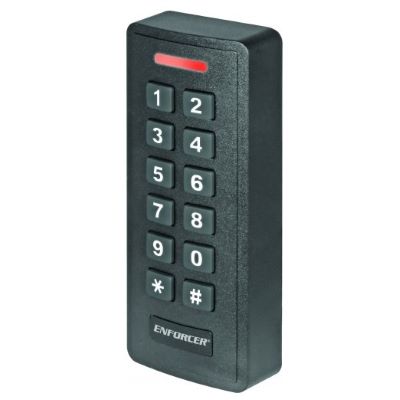

Outdoor Stand-Alone / Wiegand Keypad with Proximity Reader

Name: Outdoor Stand-Alone / Wiegand Keypad with Proximity Reader
Brand: Seco-Larm
SKU: SK-2612-SPQ
Rating: 5 (1 reviews)

Item # SK-2612-SPQ

Manufacturer Item # SK-2612-SPQ

Sold As: ea
Special Order

More Products from Seco-Larm

Add to Shopping List

Save For Later

Overview

Outdoor Stand-Alone / Wiegand Keypad with Proximity Reader

Keypad and Proximity Card Reader.

Features:

1,000 Users (up to 998 users and 2 duress users)
User code length 4-6 digits
9-18 VDC Operation, low current draw – 105mA max.
Form C relay output – 2A@12VDC
Adjustable output time – 0.5-99s, or toggle
Built-in tamper alarm and external alarm (duress) output
Backlit keypad and multicolor status LED
EM 125kHz, Proximity cards (PR-K1S1-A) and Keyfobs (PR-K1K1-AQ) sold separately
Easy transfer of users to additional devices using Wiegand output
All features programmed directly on the keypad: No need for an external programmer
Egress input lets users exit the premises without a code/card
Can serve as either Wiegand reader or controller, both output and input are selectable 26-37 bits
2-Door interlock function
Extreme cold tolerance to -40° F (-40° C)
Epoxy-filled black ABS plastic housing –Weatherproof IP66

Specifications

Product Name	Outdoor Stand-Alone / Wiegand Keypad with Proximity Reader

Brand Name	Seco-Larm

Mfg #	SK-2612-SPQ

Cube	8.66 cu in

Length	1.94 in

Width	0.94 in

Height	4.75 in

Weight	0.36 lbs

Operating Voltage	9 - 18 VDC

Rating	IP66

Transmission Band	125 kHz

Documents

SK-2612-SPQ.pdf
