Home » Fire » Horns & Strobes » Horn Strobes

View Larger

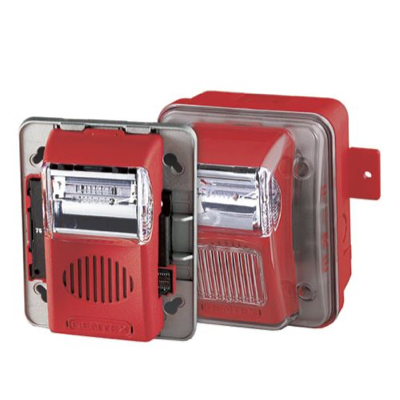

Outdoor Horn/Strobe - Red

Name: Outdoor Horn/Strobe - Red
Brand: Gentex Corp.
SKU: WGEC24-75WR
Rating: 5 (1 reviews)

Item # WGEC24-75WR

Manufacturer Item # WGEC24-75WR

Sold As: EA

More Products from Gentex Corp.

Add to Shopping List

Save For Later

Overview

Outdoor Horn/Strobe - Red

The WGEC24-75WR is an outdoor horn/strobe, fixed 75 candela, wall mount, include GOE enclosure, red faceplate. 24 VDC.

Features:

Nominal voltage 24 VDC
Fixed 75 candela
GOE Unit Dimensions: 5.84” (14.83 cm) high x 4.81” (12.22 cm) wide x 4.22” (10.72 cm) deep
Prewire entire system, install mounting bracket, then install signals
Input terminals accept 12 to 18 AWG
Horn/strobe switch selection for high or low dBA
Horn/strobe switch for 2400 Hz, mechanical, chime and whoop tones
Horn/strobe switch for continuous or temporal 3 (not available on whoop tone)
Synchronize strobe and/or horn by using Gentex AVSM Control Module
Silence audible while visual appliance will remain flashing

Specifications

Product Name	Outdoor Horn/Strobe - Red

Brand Name	Gentex Corp.

Mfg #	WGEC24-75WR

Cube	266.5 cu in

Length	4.75 in

Width	4.18 in

Height	5.75 in

Candela	75

Color	Red

Environment	Outdoor

Installation	Wall

Operating Voltage	24 VDC

Sound Output (dB)	70 - 82 dBA

UPC	700217018491

Wire (Awg)	12 - 18

Documents

WGEC24-75WR.pdf
