Overview

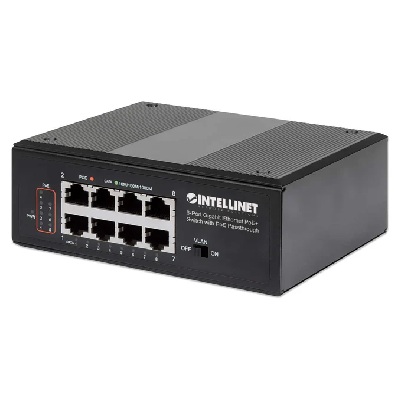

Industrial PoE-Powered 8-Port Gigabit Switch with PoE Passthrough
One PD PoE Port with 95 W Power input, seven PSE PoE ports, PoE power budget up to 120 W, IEEE 802.3at/af compliant, DIN-Rail mount.
Features:
- Supports up to 95 W power input from a PoE injector or switch
- Provides up to seven PoE network devices with power and data
- Doubles the connection distance between PoE source and device from 100 m (328 ft.) to 200 m (656 ft.)
- Powered via PoE, DC power adapter or industrial power supply (no power supply is included with this product)
- PoE power budget up to 120 watts (depending on the power supply used)
- Saves installation costs by delivering data and power over existing network cables
- IEEE 802.3at/af-compliant RJ45 PoE/PoE+ output ports
- Power output up to 30 watts per port
- Grounding point to protect equipment from external electrical surges
- Two redundant DC inputs (48 – 57 V) with I/O terminal block
- Port surge protection up to 6 kV
- Supports IEEE 802.3at and IEEE 802.3af-compliant PoE devices (e.g., wireless access points, VoIP phones, IP cameras)
- Supports IEEE 802.3at/af detection and short circuit, overload and high-voltage protection
- Option for DIN-rail installation
- Rated for shock (IEC 60068-2-27), freefall (IEC 60068-2-32) and vibration (IEC 60068-2-6)
- Wide operating temperature: -20 – 75℃ (-4 – 167°F)
- On/off switch to toggle VLAN
- 10/100/1000 auto-sensing ports automatically detect optimal network speeds
- 16 Gbps switch fabric
- Green Ethernet power-saving technology deactivates unused ports and adjusts power levels based on the cable length
- All RJ45 ports with Auto-MDIX (auto uplink) support
- Supports 4k MAC address entries with Auto-Learning and Auto-Aging
- Supports jumbo frames up to 9.2 kBytes
- Store and forward switching architecture
- Supports IEEE 802.3x flow control on full duplex and backpressure on half duplex
- LEDs for power, link/activity and PoE
- Fanless design ideal for silent operation
- Three-year warranty
