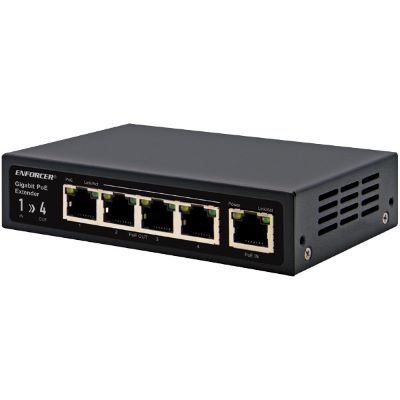

Seco-Larm NR-P401E-TQ Gigabit PoE Extender, 1-Input to 4-Outputs Seco-Larm NR-P401E-TQ
View Larger

Seco-Larm NR-P401E-TQ Gigabit PoE Extender, 1-Input to 4-Outputs

Item # NR-P401E-TQ
Manufacturer Item # NR-P401E-TQ

Log In To View
Prices
Pixel Silver
Sold As: each
Special Order
Pixel Trans
Pixel Trans
Seco-Larm
More Products from Seco-Larm
Pixel Silver
Product Shopping List  Add to Shopping List
Product Wish List  Save For Later
Product Bookmark  Share
Report Incorrect
Pixel Trans

Overview

Pixel Trans
Seco-Larm NR-P401E-TQ Gigabit PoE Extender, 1-Input to 4-Outputs
Pixel Trans
The ENFORCER Gigabit PoE Extenders connects PoE cameras, IP access control, IP speakers/intercoms, IP telephony, or other PoE devices using a single Cat5e or Cat6 cable to extend data and power by an additional 328ft (100m), for a total range of up to 984ft (300m) with two extenders. The NR-P401E-TQ supports up to 4 PoE devices.

Features:
  • Extends the range of PoE Ethernet devices over Cat5e or higher cables an additional 328ft (100m)
  • Connects 10,100,1000BaseT PoE devices including IP cameras, IP access control, VOIP, IP speakers/intercoms, etc.
  • Supports up to gigabit transmission rates
  • Passive operation – no external power required
  • Easy plug-and-play installation
  • Compliant with IEEE802.3af, IEEE802.3at
  • Automatically detects PoE equipment and protects from damage due to faulty installation
  • 4 Output ports for up to 4 PoE devices
  • Also compliant with IEEE802.3bt 4 pairs

Specifications

Pixel Trans
  Product NameSeco-Larm NR-P401E-TQ Gigabit PoE Extender, 1-Input to 4-Outputs
Pixel Silver
  Brand NameSeco-Larm
Pixel Silver
  Mfg #NR-P401E-TQ
Pixel Silver
  Cube17.91 cu in
Pixel Silver
  Length3.38 in
Pixel Silver
  Width4.69 in
Pixel Silver
  Height1.13 in
Pixel Silver
  Weight0.55 lbs
Pixel Silver
  ClassIEEE 802.3af/at/bt
Pixel Silver
  ColorBlack
Pixel Silver
  ConnectivityEthernet
Pixel Silver
  Maximum Power Per Port (W)13.75
Pixel Silver
  PoE Budget (W)55
Pixel Silver
  PoE Ports4
Pixel Silver
Pixel Trans

Documents

Pixel Trans
Pdf NR-P401E-TQ.pdf
