Home » Networking » Network Switches & Routers

View Larger

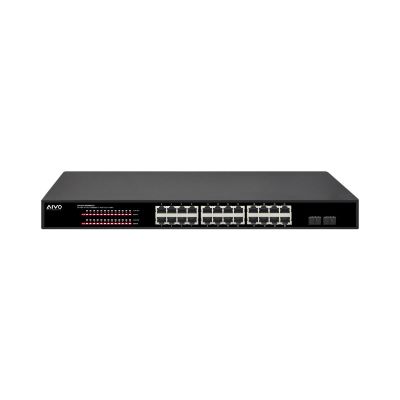

24 Port 400W Gigabit PoE Unmanaged Switch 2 1000M SFP

Name: 24 Port 400W Gigabit PoE Unmanaged Switch 2 1000M SFP
Brand: Avycon
SKU: AVN-S24-2P24W400G-SP
Rating: 5 (1 reviews)

Item # AVN-S24-2P24W400G-SP

Manufacturer Item # AVN-S24-2P24W400G-SP

Sold As: ea
Special Order

More Products from Avycon

Add to Shopping List

Save For Later

Overview

24 Port 400W Gigabit PoE Unmanaged Switch 2 1000M SFP

The AVN-S24-2P24W400G-SP provides 24 PoE/PoE+ ports, which can automatically detect and provide power for any connected 802.3at/af Powered Device (PD), such as VOIP Phones, APs, IP Phones and IP Cameras. With its built-in surge protection feature, it is suitable for larger commercial applications. Total PoE Budget of 370W, Built-in Individual Surge Protection, rack mountable (included).

Features:

IEEE802.3af / IEE802.3at Compliant
24 x 10/100/1000Base-TX Ports and 2 x 1000Mbps SFP Ports
24 x PoE / PoE+ ports, with each port supporting a 30W max. power output
Total PoE budget of 370W
High backplane bandwidth of 52 Gbps
Up to 8k MAC address table size
IEEE802.3x Flow control
Industrial standard 19’’ 1U rack-mountable housing
Pin Assignment: V+ (RJ45 Pins 1, 2), V- (RJ45 Pins 3, 6)
EMI standards complies with FCC, CE class B
Built in Surge protector, for each individual port

Specifications

Product Name	24 Port 400W Gigabit PoE Unmanaged Switch 2 1000M SFP

Brand Name	Avycon

Mfg #	AVN-S24-2P24W400G-SP

Cube	684 cu in

Length	7.87 in

Width	17.32 in

Height	1.73 in

Weight	11 lbs

Class	IEEE 802.3at/af

Connectivity	Ethernet

Environment	Indoor

Installation	Rack Mountable

Maximum Power Per Port (W)	30

PoE Budget (W)	370

PoE Ports	24

Ports	24

Rack Units	1U

SFP Ports	2

Documents

AVN-S24-2P24W400G-SP.pdf
