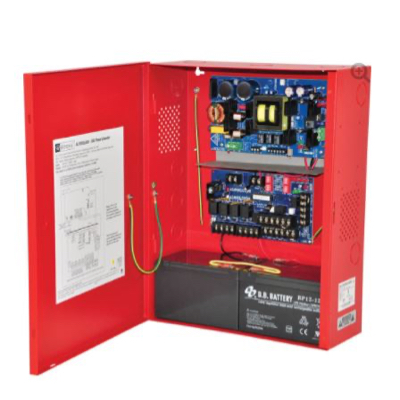

Name: NAC Power Supply 2 Class A or 4 Class B Outputs 24 VDC
Brand: Altronix
SKU: AL1002ULADA
Rating: 5 (1 reviews)

Overview

NAC Power Supply 2 Class A or 4 Class B Outputs 24 VDC

AL1002ULADA is an extremely cost effective voltage regulated remote NAC Power Extender. It may be connected to any 24 volt Fire Alarm Control Panel (FACP). Primary applications include Notification Appliance Circuit (NAC) expansion (supports ADA requirements) and providing auxiliary power to support system accessories.

Features:

Input Voltage: 120VAC, 60Hz, 5A
Two (2) Class A or two (2) Class B inputs
Two (2) NC dry contact trigger inputs
Output Voltage 24VDC power-limited outputs
2-wire horn/strobe Sync mode allows audible notification appliances (horns) and visual notification appliances (strobes) to be silenced/deactivated at the same time
Sync protocols include Potter/Amseco, Gentex®, System Sensor®, and CooperWheelock®
Temporal Code 3, Steady Mode, Input to Output Follower Mode (maintains synchronization of notification appliances circuit)
Compatible with 12VDC or 24VDC fire panels
Output loop supervision steered to Input 1 or Input 2
Signal circuit trouble memory (helps identify intermittent loop problems)
Common trouble input and output for external trouble signals tie-in
Ground fault detection

Specifications

Product Name	NAC Power Supply 2 Class A or 4 Class B Outputs 24 VDC

Brand Name	Altronix

Mfg #	AL1002ULADA

Cube	1000 cu in

Length	12.00 in

Width	4.50 in

Height	15.50 in

Weight	12 lbs

Color	Red

Current (A)	10

Environment	Indoor

Operating Voltage	120 VAC

Output Voltage	24 VDC

Outputs	2

NAC Power Supply 2 Class A or 4 Class B Outputs 24 VDC
