Home » Access & Intercom » Exit Devices » Push Buttons

View Larger

Multicolor Illuminated Vandal-Resistant RTE Plate - Single Gang

Name: Multicolor Illuminated Vandal-Resistant RTE Plate - Single Gang
Brand: Seco-Larm
SKU: SD-7275SGEX1Q
Rating: 5 (1 reviews)

Item # SD-7275SGEX1Q

Manufacturer Item # SD-7275SGEX1Q

Sold As: EA

More Products from Seco-Larm

Add to Shopping List

Save For Later

Overview

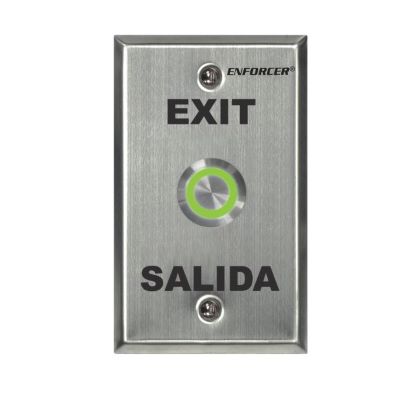

Multicolor Illuminated Vandal-Resistant RTE Plate - Single Gang

The ENFORCER Multicolor Illuminated Vandal-Resistant Request-to-Exit Plates come with seven field-selectable LED colors, practical for a wide range of indoor/outdoor applications.

Features:

Illuminated vandal-resistant 1"(25mm)diameter pushbutton
12VDC LED – supports 24VDC with included 1kΩ, 1/4W resistor
Field-selectable LED color: red, green, blue, magenta, yellow, cyan, or white
NO/NC (DPST) switch
Switch contact rating: 20A@24VAC / 1A@24VDC
Switch is Weatherproof IP65 rated for outdoor use
“EXIT” and “SALIDA” silk-screened on plate

Specifications

Product Name	Multicolor Illuminated Vandal-Resistant RTE Plate - Single Gang

Brand Name	Seco-Larm

Mfg #	SD-7275SGEX1Q

Cube	29.4 cu in

Length	2.75 in

Width	1.19 in

Height	4.50 in

Weight	3.06 lbs

Environment	Outdoor

Operating Voltage	12 / 24 VDC

Rating	IP65

Documents

SD-7275SGEX1Q.pdf
