Multicolor Illuminated Vandal-Resistant Request-to-Exit Plates, Slimline

Name: Multicolor Illuminated Vandal-Resistant Request-to-Exit Plates, Slimline
Brand: Seco-Larm
SKU: SD-7175SGEX1Q
Rating: 5 (1 reviews)

Item # SD-7175SGEX1Q

Manufacturer Item # SD-7175SGEX1Q

Sold As: EA
Special Order

More Products from Seco-Larm

Add to Shopping List

Save For Later

Overview

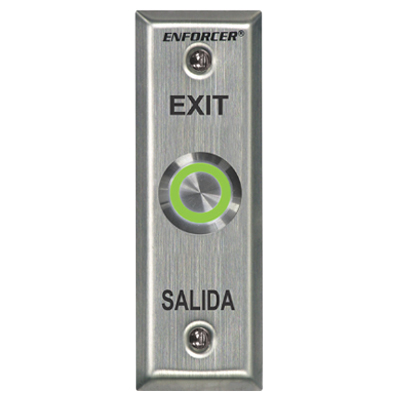

Multicolor Illuminated Vandal-Resistant Request-to-Exit Plates, Slimline

Vandal-resistant, 1" diameter, illuminated, momentary pushbutton on slimline plate. Field-selectable LED color: red, green, blue, magenta, yellow, cyan, or white (12VDC). "EXIT" and "SALIDA" printed on plate.

Features:

ETL, Conforms to UL Std. 294
Illuminated vandal-resistant ø1″ (ø25mm) pushbutton
12VDC LED – supports 24VDC with included 1kΩ, 1/4W resistor
Field-selectable LED color: red, green, blue, magenta, yellow, cyan, or white
NO/NC (DPST) switch
Switch contact rating: 20A@24VAC / 1A@24VDC
Switch is weatherproof (IP65) for outdoor use
“EXIT” and “SALIDA” silk-screened on plate

Specifications

Product Name	Multicolor Illuminated Vandal-Resistant Request-to-Exit Plates, Slimline

Brand Name	Seco-Larm

Mfg #	SD-7175SGEX1Q

Cube	32.5 cu in

Length	1.18 in

Width	2.75 in

Height	4.50 in

Weight	0.19 lbs

Operating Voltage	12 / 24 VDC

Rating	IP65

Documents

SD-7175SGEX1Q-Datasheet.pdf
