Home » Fire » Horns & Strobes » Horn Strobes
Pixel Trans

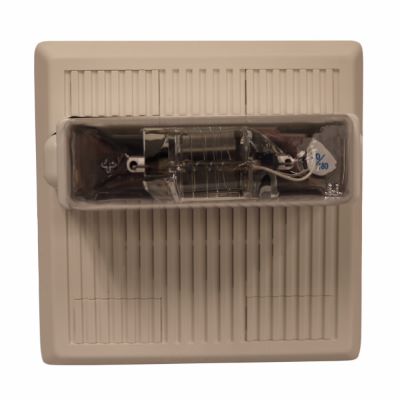

Multi-tone Wall Mount Fire Horn Strobe - White Wheelock WHMTWPB-2475W-NW KIT
View Larger

Multi-tone Wall Mount Fire Horn Strobe - White

Item # WHMTWPB-2475W-NW KIT
Manufacturer Item # MTWPB-2475W-NW KIT

Log In To View
Prices		 Pixel Silver
Sold As: ea
Special Order
Pixel Trans
Pixel Trans
Wheelock
More Products from Wheelock 		Pixel Silver
Product Shopping List  Add to Shopping List
Product Wish List  Save For Later
Pixel Trans
Report Incorrect
Pixel Trans

Overview

Pixel Trans
Multi-tone Wall Mount Fire Horn Strobe - White
Pixel Trans
Wheelock MTWP weatherproof multitone horn strobe kit with IOB backbox, xenon, wall, white, no lettering, clear lens, 30 cd indoor, 115/180 cd outdoor, 24V

Features:
  • Approvals include: UL Standard 1971, UL Standard 464, ULC-S525, ULC-S526, California State Fire Marshal (CSFM), and Factory Mutual (FM). See approvals by model in Specifications and Ordering Information
  • Designed to meet or exceed ADA/NFPA/UFC/ANSI Standards and Accessibility Guidelines
  • Complies with OSHA 29, Part 1910.165
  • Series MT appliances have IN and OUT wiring terminations that accept two #12 to #18 American Wire Gauge (AWG) wires at each terminal. Inputs are polarized for compatibility with standard reverse polarity type supervision
  • One alarm appliance with (8) eight selective signals to provide superior sound penetration for various ambient and wall conditions with two field selectable sound output levels
  • Code-3 Horn and Tone meet ANSI/NFPA temporal pattern for standard emergency evacuation signaling. MT (Version 2) Code 3 Horn may be synchronized with the same equipment as the strobe.
  • Audible and strobe can operate from a single NAC circuit or from separate NAC circuits with any of the (8) eight audible sounds
  • MT Strobe models are available with Wheelock patented MCW Multi - Candela strobes with field selectable candela settings at 15/30/75/110cd strobes. Synchronize using the Wheelock Sync Modules or panels with built-in Wheelock Patented Sync Protocol
  • Selectable input voltage on non-strobe versions. Strobe versions are factory set for either 12 or 24VDC, with regulated voltage range, filtered (DC) and FWR
  • No additional trimplate required for flush mounting

Specifications

Pixel Trans
  Product NameMulti-tone Wall Mount Fire Horn Strobe - White
Pixel Silver
  Brand NameWheelock
Pixel Silver
  Mfg #MTWPB-2475W-NW KIT
Pixel Silver
  Cube114.53 cu in
Pixel Silver
  Length3.23 in
Pixel Silver
  Width5.13 in
Pixel Silver
  Height5.13 in
Pixel Silver
  Weight1.22 lbs
Pixel Silver
  ColorWhite
Pixel Silver
  EnvironmentOutdoor
Pixel Silver
  InstallationWall
Pixel Silver
  UPC786689365103
Pixel Silver
Pixel Trans

Documents

Pixel Trans
Pdf MTWPB-2475W-NW KIT.pdf
