Home » Power & Batteries » Power Accessories » Relay

View Larger

Multi-Output Access Power Controller - 8 PTC Class 2 Relay Outputs

Name: Multi-Output Access Power Controller - 8 PTC Class 2 Relay Outputs
Brand: Altronix
SKU: ACM8CB
Rating: 5 (1 reviews)

Item # ACM8CB

Manufacturer Item # ACM8CB

Sold As: EA
Special Order

More Products from Altronix

Add to Shopping List

Save For Later

Overview

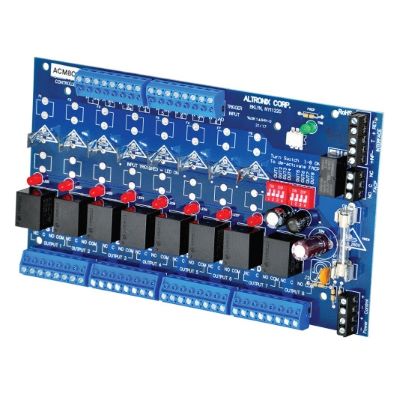

Multi-Output Access Power Controller - 8 PTC Class 2 Relay Outputs

Altronix ACM8CB converts one (1) 12 to 24 volt AC or DC input into eight (8) independently controlled Class 2 rated PTC protected power-limited auto-resettable outputs rated at 2.5A each. The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices.

Features:

Fire Alarm disconnect (latching or non-latching) is individually selectable for any or all of the eight (8) outputs.
Fire Alarm disconnect input options:
∘ Normally open (NO) or normally closed (NC) dry contact input.
∘ Polarity reversal input from FACP signaling circuit.
FACP output relay (form "C" contact rated @ 1A 28VDC not evaluated by UL).
Removable terminal blocks facilitate ease of installation.

Specifications

Product Name	Multi-Output Access Power Controller - 8 PTC Class 2 Relay Outputs

Brand Name	Altronix

Mfg #	ACM8CB

Cube	320 cu in

Length	8.00 in

Width	4.50 in

Height	0.75 in

Weight	0.65 lbs

Operating Voltage	12 - 24 VAC / VDC

Documents

ACM8CB.pdf
