Home » Power & Batteries » Power Accessories » Timers

View Larger

Mini Programmable Timer

Name: Mini Programmable Timer
Brand: Seco-Larm
SKU: SA-026Q
Rating: 5 (1 reviews)

Item # SA-026Q

Manufacturer Item # SA-026Q

Sold As: EA
Special Order

More Products from Seco-Larm

Add to Shopping List

Save For Later

Overview

Mini Programmable Timer

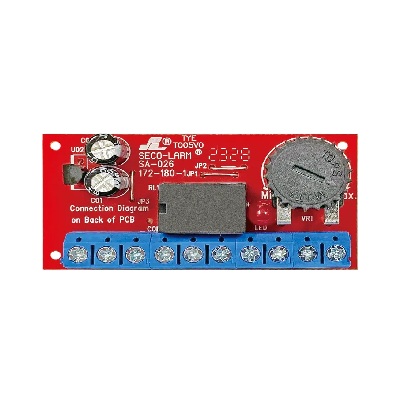

The ENFORCER SA-026Q is a low-voltage miniature timer module which operates on 12~24 VAC/VDC. It can be used to modify the activation time of a momentary contact switch for 1~180 seconds via a field-adjustable VR (variable resistor) rotary knob. It is ideal for electrical door strikes or electromagnetic locks that do not have a built-in time delay function.

Features:

Adjustable timer from 1~180 seconds via an onboard potentiometer
NO/NC Switch trigger
Compact design: 13/16”x29/32”x5/8” (30x58x16 mm)
12~24 VAC/VDC Operation
Current: 2mA (standby), 75mA (active)
Relay output: Form C (SPDT) via terminal blocks
Contacts rated 2A@24VDC
Built-in buzzer output (100mA@24VDC)
Includes double-sided foam tape

Specifications

Product Name	Mini Programmable Timer

Brand Name	Seco-Larm

Mfg #	SA-026Q

Cube	12 cu in

Length	2.28 in

Width	0.63 in

Height	1.18 in

Weight	0.09 lbs

Documents

SA-026Q-Datasheet.pdf
