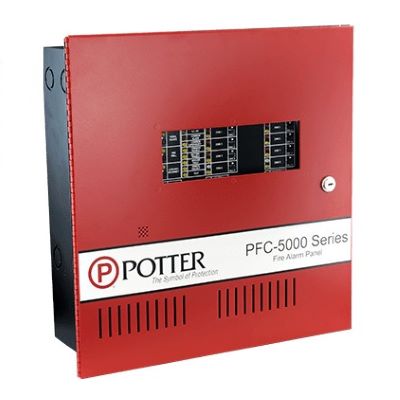

Microprocessor-Based 8 Zone Conventional Fire Panel Potter PFC-5008
View Larger

Microprocessor-Based 8 Zone Conventional Fire Panel

Item # PFC-5008
Manufacturer Item # PFC-5008

Log In To View
Prices		 Pixel Silver
Sold As: ea
Special Order
Pixel Trans
Pixel Trans
Potter
More Products from Potter 		Pixel Silver
Product Shopping List  Add to Shopping List
Product Wish List  Save For Later
Pixel Trans
Report Incorrect
Pixel Trans

Overview

Pixel Trans
Microprocessor-Based 8 Zone Conventional Fire Panel
Pixel Trans
Potter's PFC-5008 Fire Alarm Control Panel is a microprocessor based unit designed for small to medium commercial, residential, multi-family, institutional and industrial occupancies. Fully configurable using DIP switches, it enables the user to configure the system to meet their specific requirements.

Features:
  • 8 Class B (Style B) 4 Class A (Style D) Initiating Circuits 4 Class A (Style D) circuits.
  • Predefined Initiating Circuits can be configured as Waterflow or Latching/Non-Latching Supervisory
  • Selectable Alarm Verification on Initiating Circuits
  • Zone Disconnect Switches
  • 5 Amp Power Supply
  • 4 Class A/B (Style Z/Y) Indicating Circuits (1.7 Amps max. per circuit.)
  • Audibles may be configured as Steady, Temporal Code, California Code, or March Time
  • Auto Signal Silence
  • Auxiliary relay contacts for Common Alarm, Common Trouble, and Common Supervisory.
  • Built-in RS-485 Interface for RA8F Multiplexed Remote Annunciators (Up to 3 Annunciators)
  • Built-in Walk Test operation
  • Output for 4-wire resettable regulated smoke power
  • Easy configuration via DIP switches

Specifications

Pixel Trans
  Product NameMicroprocessor-Based 8 Zone Conventional Fire Panel
Pixel Silver
  Brand NamePotter
Pixel Silver
  Mfg #PFC-5008
Pixel Silver
  Cube1125 cu in
Pixel Silver
  Length5.00 in
Pixel Silver
  Width14.50 in
Pixel Silver
  Height14.88 in
Pixel Silver
Pixel Trans

Documents

Pixel Trans
Pdf PFC-5008.pdf
