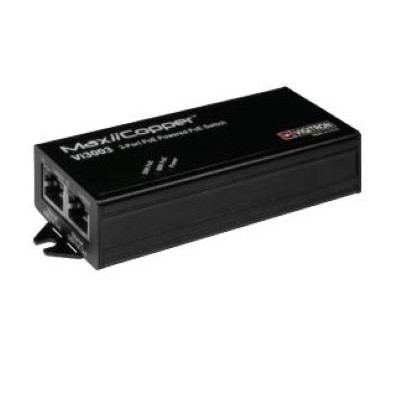

Maxiinet L2 Drop And Insert 1G 60W PoE++ 3-Port Switch

Vigitron VI3003 is a 3-port Layer 2 Ethernet and PoE switch providing drop and insert capability for connecting several IP devices along a single cable run. The VI3003 provides a cost-effective method for increasing distances beyond the standard Ethernet limit of 328 feet (100m). Multiple units can be cascaded to provide up to nine IP cameras to be connected to a single network switch port over distances of up to 2,952 feet (900m).

Features:

• Provides for multiple camera connections on a single cable run
• Each unit extends IP video and PoE for an extra 328 ft. (100m)
• Can be cascaded to transmit IP video and PoE up to 3,000 ft (909m)
• Powered by single-source PoE, no local power required
• Able to power IP PTZ domes
• Able to maintain up to 60W PoE at any point along cable run
• Automatically senses input data rate up to 1000Mbps (1Gbps)
• Provides third port for drop and insert along a single cable run
• Provides full IEEE network layer 2 switching to avoid transmission conflicts
• No network configuration required
• Provides access up to 9 IP addresses eliminating the need for network switches in small systems
• Eliminates the need for multiple cable runs for perimeter and parking lot applications
• Hardened with wide range operating temperature of -40°C to +75°C
