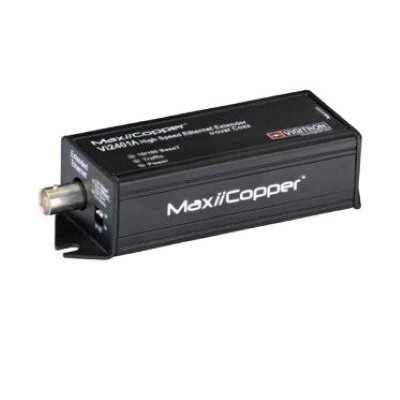

MaxiiCopper High-Speed Ethernet Extender Over Coax

Vigitron VI2401A is MaxiiCopper Ethernet over Coax Network extender that brings new performance standards to the growing need for high speed transmission of full bandwidth Ethernet and PoE over extended distances of coaxial cables. Its unique Symmetric Bandwidth (SBW) assures full bandwidth transmission is maintained over the entire operational distance for both uploads and downloads with Virtual Zero Packet Loss (VZPL). Bandwidth assurance provides the ability to transmit multiple cameras on single camera runs with no information loss.

Features:

• Converts Ethernet UTP to transmit network data and PoE over standard coax cable.
• Extends Ethernet beyond 328 feet (100 m) limitation up to 5,000 feet (1,515 m) over Coaxial cables.
• Saves additional equipment costs and reduces installation time.
• Pass-Through PoE (PTP) compatibility with 802.3af and 802.3at Power over Ethernet reduces installation costs while maintaining camera safeguards.
• MegaPixel Certified (MPC) High data rate, ideal for high bandwidth requirements of Mega-pixel cameras, multiple IP camera systems, and cameras requiring Jumbo Frame transmission.
• Symmetric Bandwidth(SBW) provides consistent upload and download with Virtual Zero
• Packet Loss (VZPL) over total specified distance.
• Type tested to RFC-2544 TCP/IP network bandwidth packet transmission standards.
• Built-in transceiver cable connectivity tester.
• Type tested for -40°C to +75°C temperature range under NEMA-TS2 testing standards.
• Data rate selectable to for maximum bandwidth utilization.
• Complies to major IEEE standards and RFC network protocols for UDP, TCP/IP, HTTP/HTTPS.
