Home » Fire » Horns & Strobes » Horn Strobes

View Larger

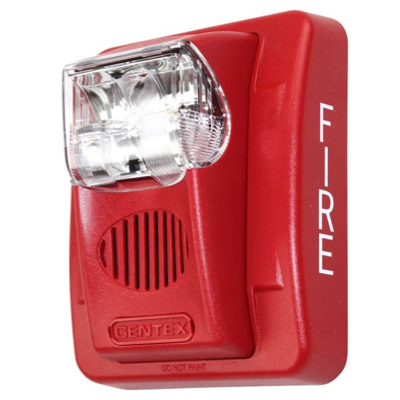

Low Profile Evacuation Horn/Strobe

Name: Low Profile Evacuation Horn/Strobe
Brand: Gentex Corp.
SKU: GEC324WR
Rating: 5 (1 reviews)

Item # GEC324WR

Manufacturer Item # GEC3-24WR

Sold As: EA

More Products from Gentex Corp.

Add to Shopping List

Save For Later

Overview

Low Profile Evacuation Horn/Strobe

The GEC3-24WR (Commander3) 24 VDC offers tamperproof field selectable candela options of 15, 30, 60, 75, and 110 candela. The GEC3 horn/strobe offers a continuous or synchable temporal 3 in 2400Hz, mechanical and chime as well as a whoop tone. All tones are easy for the professional to change in the field by the use of switches.

Features:

24 VDC field selectable candelas: 15, 30, 60, 75 & 110
Super-Slide® Bracket, Ease of Supervision Testing
Checkmate® Instant Voltage Verification
Prewire entire system, install mounting bracket, then install signals
Input terminals accept 12 to 18 AWG
Horn/strobe switch selection for high or low dBA
Horn/strobe switch for 2400 Hz, mechanical, chime and whoop tones
Horn/strobe switch for continuous or temporal 3 (not available on whoop tone)
Synchronize strobe and/or horn with Gentex AVSM Control Module
Silence audible while visual appliance will remain flashing
Wall mount

Specifications

Product Name	Low Profile Evacuation Horn/Strobe

Brand Name	Gentex Corp.

Mfg #	GEC3-24WR

Cube	87.62 cu in

Length	4.50 in

Width	2.50 in

Height	5.00 in

Candela	15 - 110

Color	Red

Environment	Indoor

Installation	Wall

Operating Voltage	24 VDC

Sound Output (dB)	100 dBA

UPC	700217023983

Documents

GEC3-24WR.pdf
