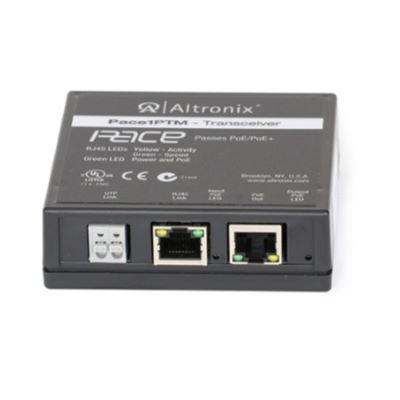

Long Range Ethernet Single Port Transceiver. 100 Mbps

The Pace1PTM is a long range Ethernet transceiver designed for use with Pace1PRM, Pace4PRM, Pace8PRM and Pace16PRM receivers. They transmit data at 100Mbps full duplex and power via a single twisted pair (UTP) (when paired with Pace1PRM) or Cat5e or higher cable in a PoE(+) compliant format. The Pace1PTM will not deliver power to non compliant devices, thus avoiding damage to improperly connected non-PoE cameras/devices. The receiver passes the PoE(+) compliant power over the cable to the Pace1PTM transceiver which in turn passes this power to an enabled IP camera/device. These plug and play units facilitate cost effective solutions for IP devices that need to be installed at distances greater than 100m. They also provide a simple way to replace legacy analog products with new IP devices over single twisted pair (UTP) (when paired with Pace1PRM) or structured cable.

Features:

• IEEE 802.3af (15W) and IEEE 802.3at (30W).
• Throughput is rated to pass 100Mbps.
• Eliminates the costs and labor associated with installing new network cabling.
• Retrofit digital IP cameras in an analog CCTV installation.
• Auto detection and protection of legacy non-PoE cameras/devices.
• Works with Megapixel, HD720, HD1080 & VGA (SD) cameras.
• Extends Network link distance in an industrial environment.
• Retrofit digital IP cameras in an analog CCTV CAT5e wired installations.
• UL Listed in the U.S. and Canada.
• CE Approved.
• C-Tick Compliant.
• Lifetime Warranty
