Home » Power & Batteries » Surge Suppression » CCTV

View Larger

IP/PoE Data and 12/24V Power Surge Protector

Name: IP/PoE Data and 12/24V Power Surge Protector
Brand: Ditek
SKU: DTK-PVPIPS
Rating: 5 (1 reviews)

Item # DTK-PVPIPS

Manufacturer Item # DTK-PVPIPS

Sold As: EA
Special Order

More Products from Ditek

Add to Shopping List

Save For Later

Overview

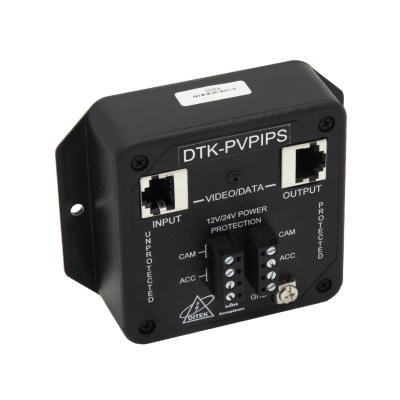

IP/PoE Data and 12/24V Power Surge Protector

The DTK-PVPIPS is designed to protect IP/PoE video cameras and systems from electrical surges and spikes on the network cabling and power supply lines. It complies with IEEE Std/ 802.3af and 802.3at for PoE, and offers shielded RJ45 connections with external grounding screw. It offers low impedance video/data protection and includes two pairs of power protection for auxiliary power to camera, heater, blowers, defrosters or PTZ motors. The DTK-PVPIPS is compatible with CAT5e, CAT6 and CAT6A cabling infrastructure, and provides optimum protection for power and data circuits.

Features:

Supports data speeds up to 10GbE without signal degradation
Two pairs of power protection (12V or 24V), rated at 6 Amps per pair to protect power to camera, heaters, blowers, defrosters or PTZ motors
RJ45 female connections with external grounding screw
Complies with all IEEE Power over Ethernet standards
UL497B Listed

Specifications

Product Name	IP/PoE Data and 12/24V Power Surge Protector

Brand Name	Ditek

Mfg #	DTK-PVPIPS

Cube	112.5 cu in

Length	4.20 in

Width	3.36 in

Height	1.85 in

Weight	0.31 lbs

UPC	782980520104

Documents

DTK-PVPIPS-Datasheet.pdf
