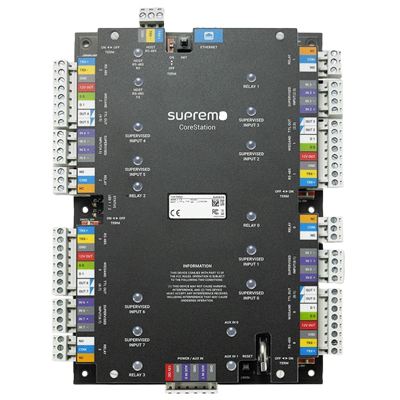

Suprema CoreStation is an intelligent door controller which provides the advantages of a biometric-enabled security over a centralized access control systems. Designed for mid to enterprise-level systems, the CoreStation handles up to 500,000 users with an incredible fingerprint matching speed of up to 400,000 match/sec. With the provisions of high-performance, biometric readiness, Ethernet communication, CoreStation is capable of offering the full features of the BioStar 2 platform. The device provides centralized biometric template management and also interfaces with complete set of reader technologies including RS-485 (OSDP) and Wiegand. With its versatility, CoreStation is a perfect access control solution for both new installations as well as a replacement of existing systems. 1.4GHz Octa Core, 4 door controller (extendable up to 132 doors), RS485 5 channel, Wiegand 4channel, 8 Supervised Input, 8 TTL Output, 4 Relay.
Features:
- Centralized storage of biometric and access group data
- Complete controller functionalities with fingerprint matching
- Multi-port interface for fingerprint/RF readers
- Supports locks, sensors, RTE, and alarm devices
- Max 500,000 users (1 million fingerprint templates)
- 500,000 RF cards/5,000,000 event logs
- High-speed fingerprint matching
- Max 400,000 match/sec (genuine matching)
- UL 294 Compliant: Highest safety and reliability certified by world-renowned label
- No Ethernet connection to the door reader
- No data storage at the door reader
- Secured communication between server and CoreStation (TLS 1.2)
- Controls up to 132 access points with extension modules (DM-20)
- Elevator Control (OM-120)
- Supports OSDP (Open Supervised Device Protocol)
- Fully Compatible with BioStar 2
