22/6 General Purpose Security & Control Cable, Stranded Bare Copper, 1000\' Pull Box Genesis Cable GEN22061101
View Larger

22/6 General Purpose Security & Control Cable, Stranded Bare Copper, 1000' Pull Box

Item # GEN22061101
Manufacturer Item # 22061101

Log In To View
Prices

Sold As: ea
Special Order
Genesis Cable
More Products from Genesis Cable
  Add to Shopping List
  Save For Later
  Share

Overview

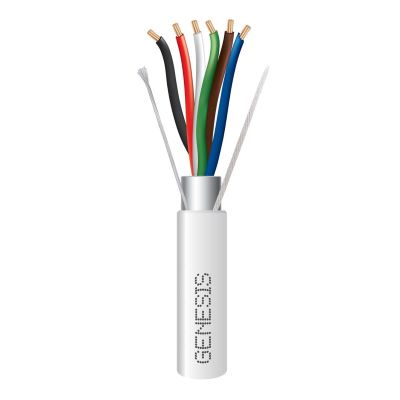

22/6 General Purpose Security & Control Cable, Stranded Bare Copper, 1000' Pull Box
The Genesis 22061101 cable features 6 Stranded bare copper conductors at 22 AWG, 1000' pull box. White.

Features:
  • Rating: CMR, CL3R, FPLR, FT4, Sunlight Resistant
  • RoHS Compliant, ETL Listed
  • 22 AWG 7 Strand Bare Copper
  • Conductor count: 6
  • Insulation: Polypropylene (0.006" nom.)
  • Insulation Colors: Black, Red, White, Green, Brown, Blue
  • Lay Length: 2.50" nom
  • Jacket: PVC(0.015" nom.)
  • Operating Voltage: 300 Volt max.
  • Flame Rating: UL 1666 (Riser), CSA C22.2 No. 2556 (FT4)
  • Origin: USA

Specifications

  Product Name22/6 General Purpose Security & Control Cable, Stranded Bare Copper, 1000' Pull Box
  Brand NameGenesis Cable
  Mfg #22061101
  Cube1309.75 cu in
  Cable JacketPvc
  ColorWhite
  Physical FormatPull Box
  ProtectionShielded
  Strands / Conductors6
  UPC194160006665
  Wire (Awg)22
  Wire ConstructionStranded

Documents

22061101.pdf
