Home » Infrastructure » Wire & Cable » Standard Security

$22/4 Plenum Rated Security & Control Cable - Stranded 500\' Pull Box - White Genesis Cable GEN31045501$

View Larger

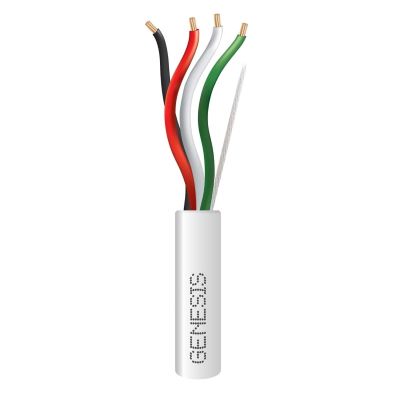

22/4 Plenum Rated Security & Control Cable - Stranded 500' Pull Box - White

Name: 22/4 Plenum Rated Security & Control Cable - Stranded 500 Pull Box - White
Brand: Genesis Cable
SKU: GEN31045501
Rating: 5 (1 reviews)

Item # GEN31045501

Manufacturer Item # 31045501

Sold As: ea

More Products from Genesis Cable

Add to Shopping List

Save For Later

Overview

22/4 Plenum Rated Security & Control Cable - Stranded 500' Pull Box - White

The Genesis 31045501 cable features 7-strand bare copper conductors at 22 AWG and a plenum rating, 4 conductors. 500' pull box.

Features:

Rating: CMP, CL3P, FPLP, FT6
ETL Listed, RoHS Compliant
22 AWG 7 Stranded Bare Copper
Conductor count: 4
Insulation: Plenum PVC (0.007" nom.)
Insulation Colors: Black, Red, White, Green
Lay Length: 4.50" nom
Jacket: Plenum PVC(0.015" nom.)
Operating Voltage: 300 Volt max.
Flame Rating: NFPA 262 (Plenum); CSA C22.2 No. 2556 (FT6)
Origin: USA

Specifications

Product Name	22/4 Plenum Rated Security & Control Cable - Stranded 500' Pull Box - White

Brand Name	Genesis Cable

Mfg #	31045501

Cube	600 cu in

Cable Jacket	Pvc

Color	White

Physical Format	Pull Box

Strands / Conductors	4

UPC	781410784024

Wire (Awg)	22

Wire Construction	Stranded

Documents

31045501.pdf
